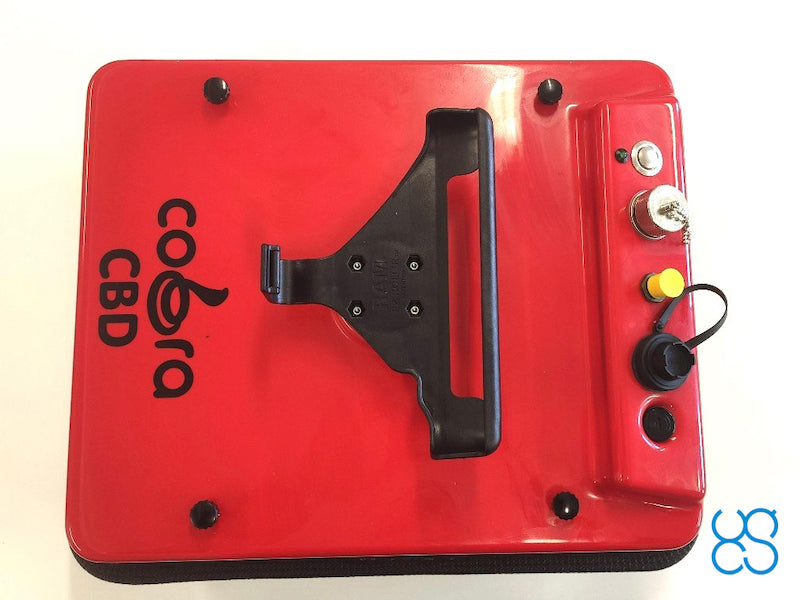

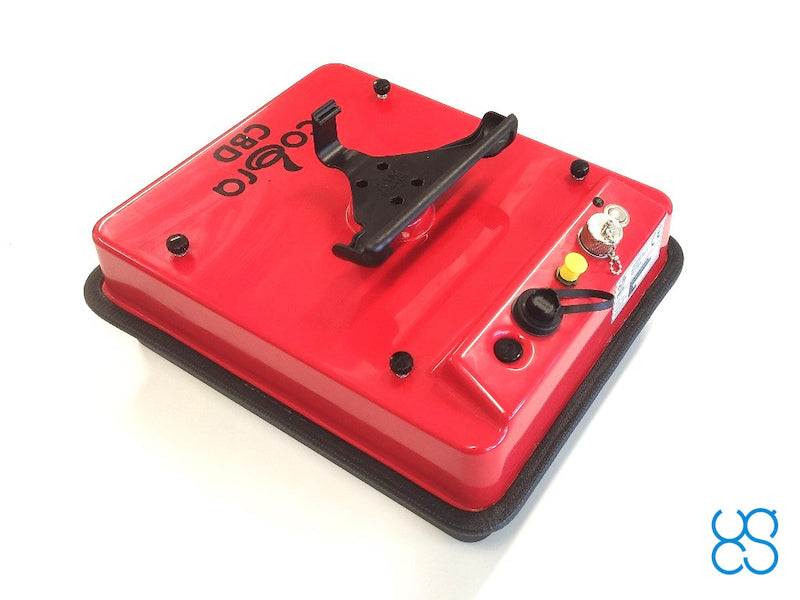

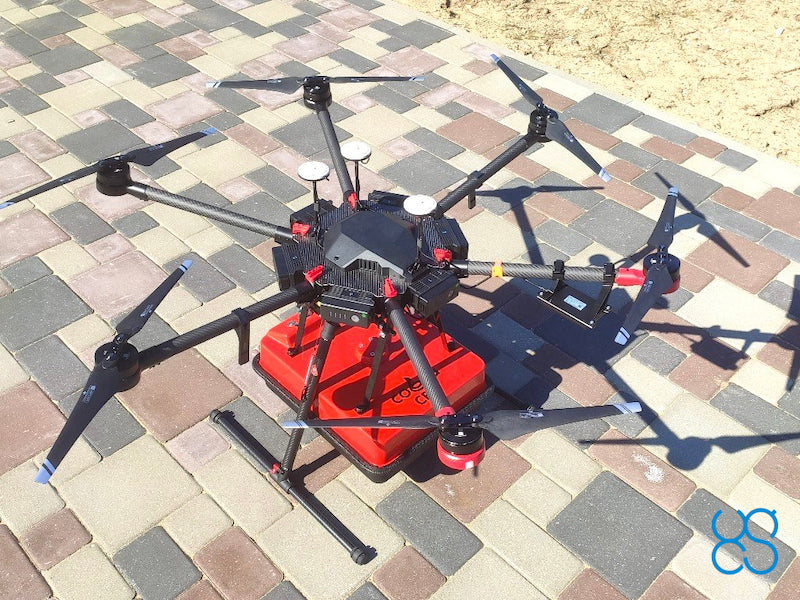

Airborne version of the Radarteam Cobra CBD GPR system.
HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
| Type | Single-channel with unshielded antenna |
| Center frequency | 500 MHz |
| Operating bandwidth | 50-1400 MHz |
| Sample rate | 40,000 samples/second |
| Scan rate | 1-40 scans/s per channel @ 512 samples/scan |
| Sample output | 16-bit digital raw data |
| Time range | 0-2000 ns selectable. Typical 0-500 ns |
| Depth | Up to 10 m depending on ground properties, typical penetration 2..4m |
| Data format | Standard Geophysical SEGY Data Format (.sgy) with traces geotagging |
| DOCUMENTATION & DATA SETS | |
| User Manual | |
| Data Samples | |
| ENVIRONMENTAL | |
| Temperature | -20°C to 40°C internal temperature |
| Humidity | 96% non-condensing |
| Ingress protection | IP68 |
| MECHANICAL | |
| Size (L x W x H) | 50 x 35 x 20 |
| Weight | 5.2 kg |
| BATTERY | |
| Battery | Integrated battery 94 Wh Li-Ion |
| Operating time | up to 10 hours |
| WHAT’S IN THE KIT | |
| |
