Electromagnetic impulse (EMI) geophysical instrument for conductive materials detection.

The Ebinger VEMOS AIR Mk1 is the successor to the Ebinger UPEX 740M "big loop" metal detector. The original UPEX 740M was heavily modified to make it suitable for use on mid-sized drones.

Ebinger VEMOS AIR is capable of detecting non-ferrous conductors and smaller objects compared to magnetometers. System limitations:

• Can’t detect deep (>2m) targets
• Can’t detect landmines with minimum amount of metal

Recommended drones:

• DJI M350/M300 RTK
• InspiredFlight IF1200A or similar

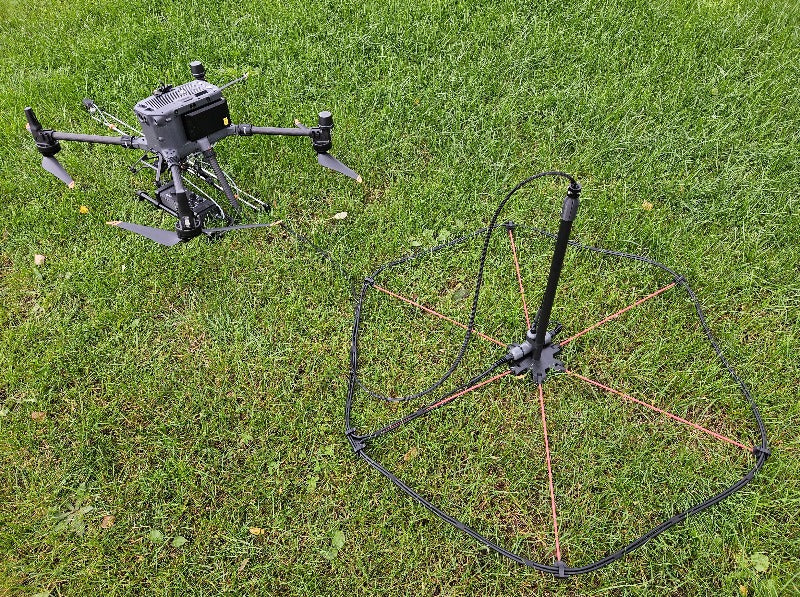

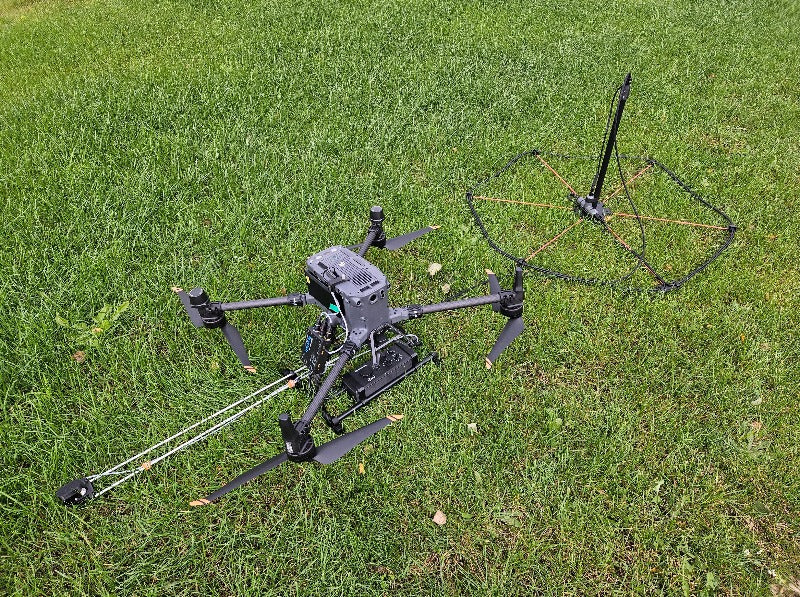

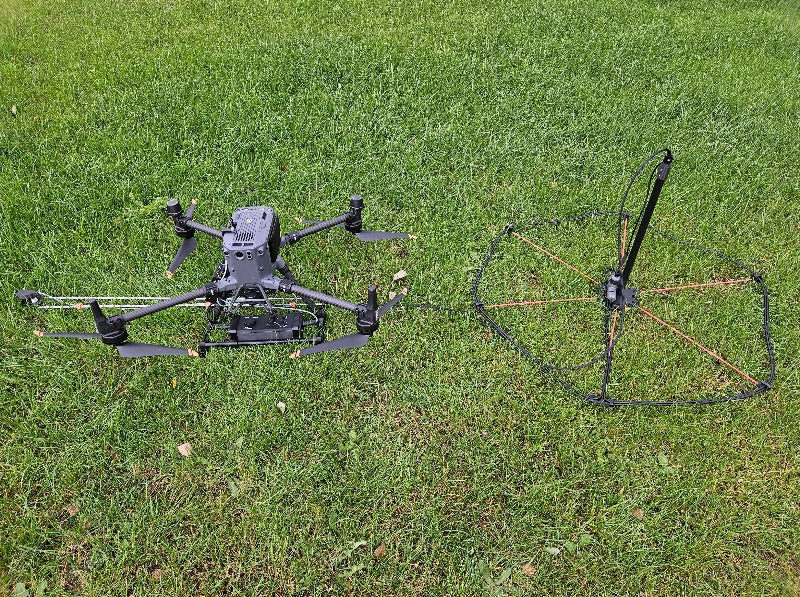

Package includes:

• electronics module
• search coil on foldable frame
• mounting and suspension system
• extended mounting for laser altimeter
• data and power cables
• rugged transportation case

Please note that additional components and software must be ordered to use this sensor with drones, please ask for a quote.

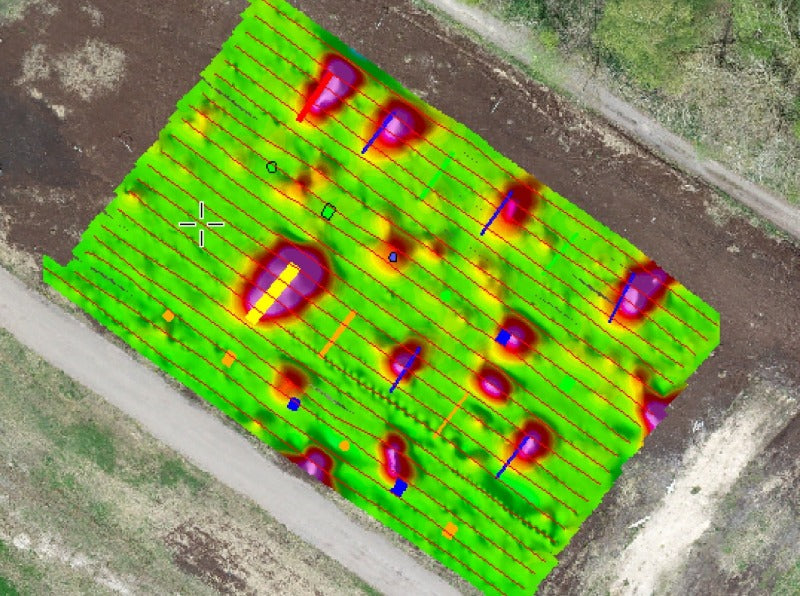

Data example:

HS Code: 90158020 (meteorological, hydrological, geophysical instrument)

Weight/packaging information:

• search coil: D=105cm, 60x25 cm (packed), 1.20 kg
• electronics module: 250x85x76 mm (without mountings), 0.6 kg / 0.75 kg (without mountings / with mountings)
• transport case: 85 x 43 x 18 cm, 11kg
