SPH Engineering's GeoHammer is a simple to use tool to quickly assess and process GPR () and CSV data from various sensors (, metal detectors, gamma-radiation spectrometers, etc.).

Particularly useful as a data processing tool in the field, the interface is optimized for maximum simplicity and ease of use.

Main features and functions:

• Windows and Mac OS support
• import of GPR data in SEG-Y and  formats
• display data tracks on the map
• split data to separate lines
• most popular processing options covering majority of applications for scenarios like utilities and other man-made objects detection:
  • background removal and contrast (gain) adjustment for GPR data
  • low-pass filtering for CSV data
  • GNSS time-lag compensation (CSV)
  • data quality check for coverage and altitude range (CSV)
  • running median filtering to highlight anomalies in the data

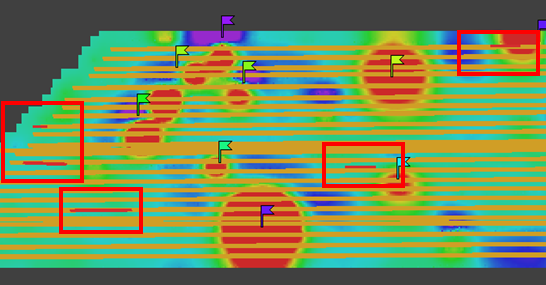

• setting marks in the data
• export marks in KML format

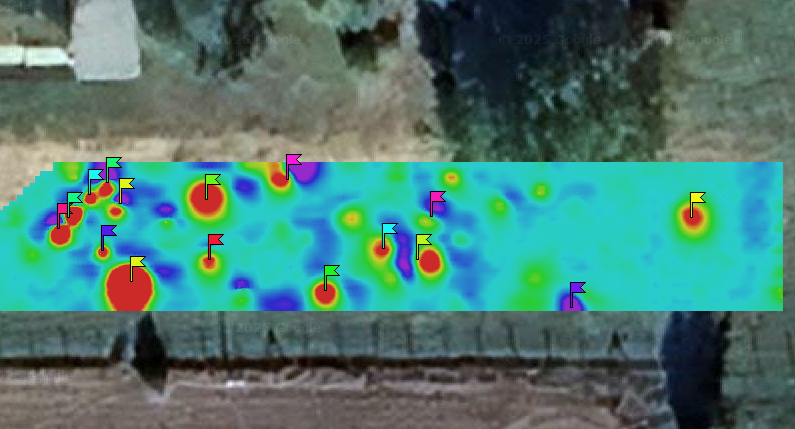

• generate and export amplitude maps as geotagged GeoTiff images for GPR data
• data gridding and export as GeoTiff images for CSV data
• customizable templates for CSV data import, out of the box GeoHammer has import templates for following data formats:
  • SPH Engineering's data log (position.csv file)
  • SPH Engineering magnetometer
  • SENSYS MagDrone , , data files (ASC format)
  • SENSYS MagDrone raw data files
  • series gamma ray spectrometers CSV files
  • Geometrics MagArrow
  • GEM Systems GSMP-25/35

User manual: link

Download link: link

Shipping: within 1 business day of purchase, the GeoHammer Pro activation license will be sent via email.

Price includes 1 year of support and access to the new versions of GeoHammer Pro.
