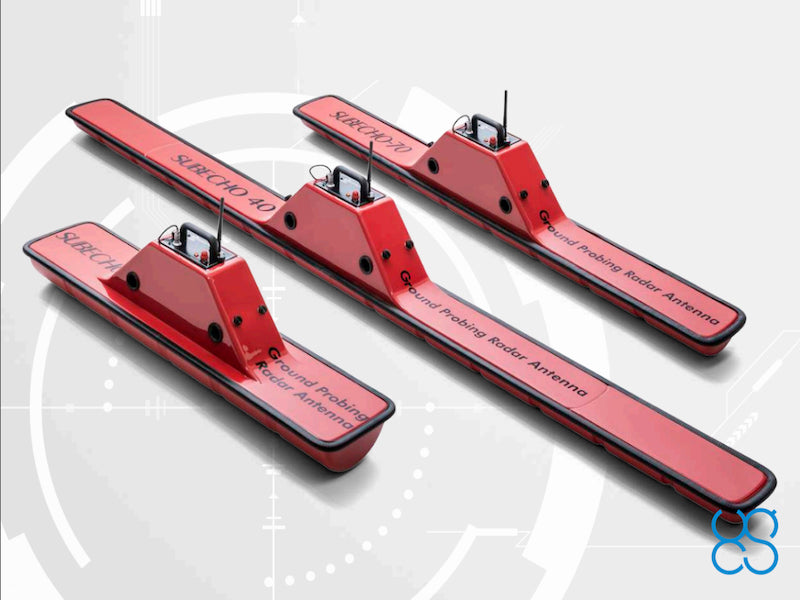

Low-frequency GPR system with 3 antenna options:
HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
| Type | Single-channel with unshielded antenna |
| Center frequency |
|
| Operating bandwidth |
|
| Samples | 512 per trace |
| Sample rate | 2560 samples/second |
| Scan rate | 5 scans/s |
| Sample output | 16-bit digital raw data |
| Time range |
|
| Depth | Up to 20...30 meters depending on ground properties |
| Data format | Standard Geophysical SEGY Data Format (.sgy) with traces geotagging |
| DOCUMENTATION & DATA SETS | |
| Data Sheet | |
| User Manual | |
| Data Samples | |
| ENVIRONMENTAL | |
| Temperature | -20°C to 50°C |
| Ingress protection | IP67 |
| MECHANICAL | |
| Size (L x W x H) |
|
| Weight |
|
| BATTERY | |

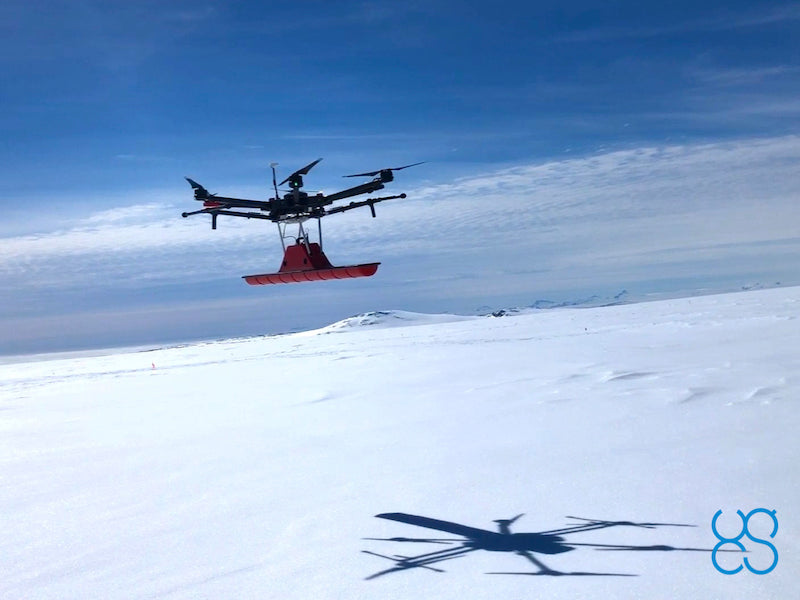

| Airborne variant | Drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload |
| Ground surveys | Integrated battery 11.1 V/ 6.6 Ah, 73 Wh Li-Ion battery, operating time up to 12 hours |
| WHAT’S IN THE KIT | |
| |
