A gamma-ray spectrometer (GRS) is a scientific instrument designed to measure and analyze the energy and intensity of gamma rays emitted by radioactive substances. Gamma rays are high-energy electromagnetic radiation, and their specific energies are unique to the elements emitting them, making gamma-ray spectrometers essential tools in many fields.

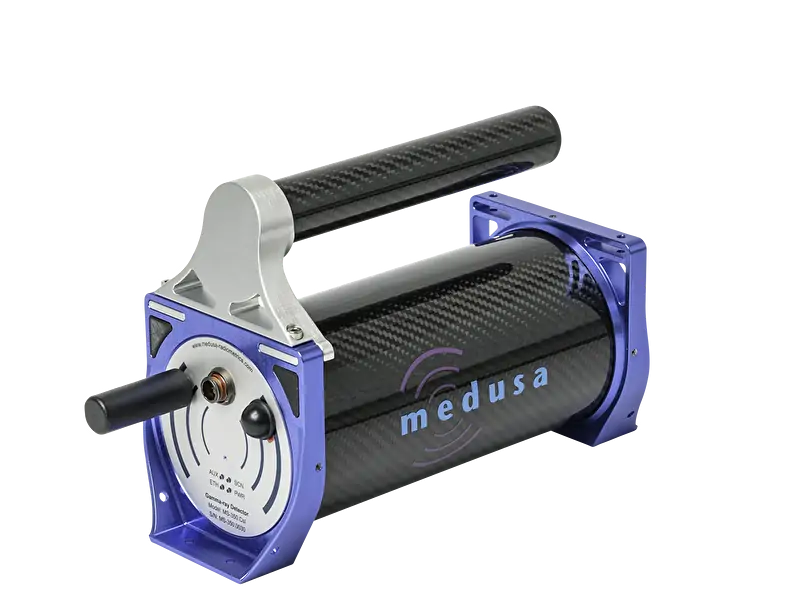

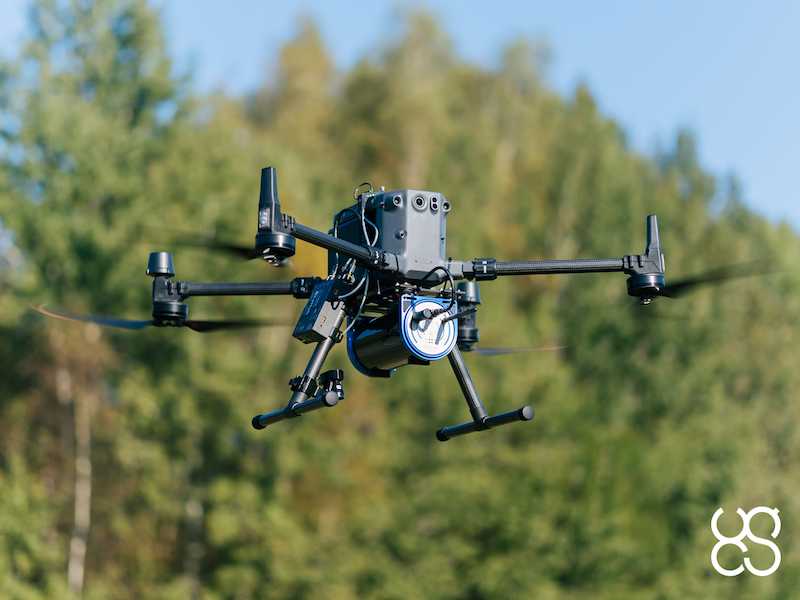

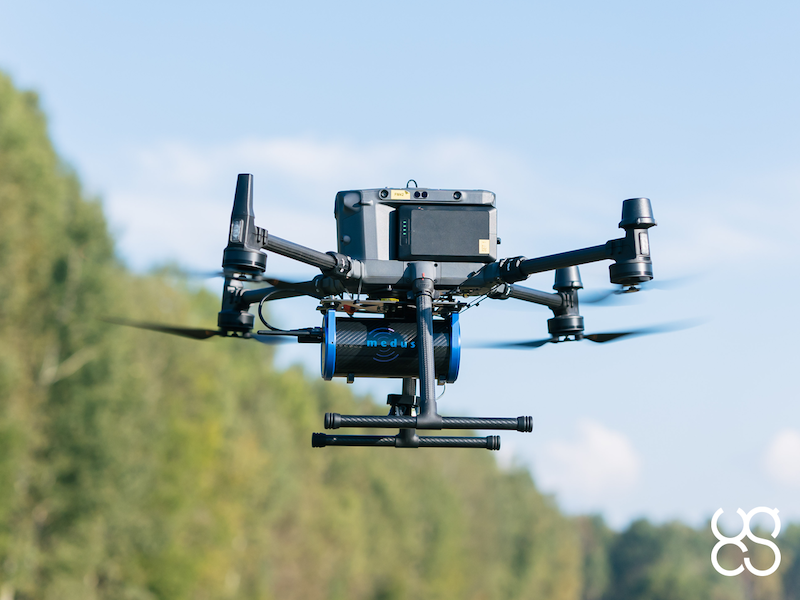

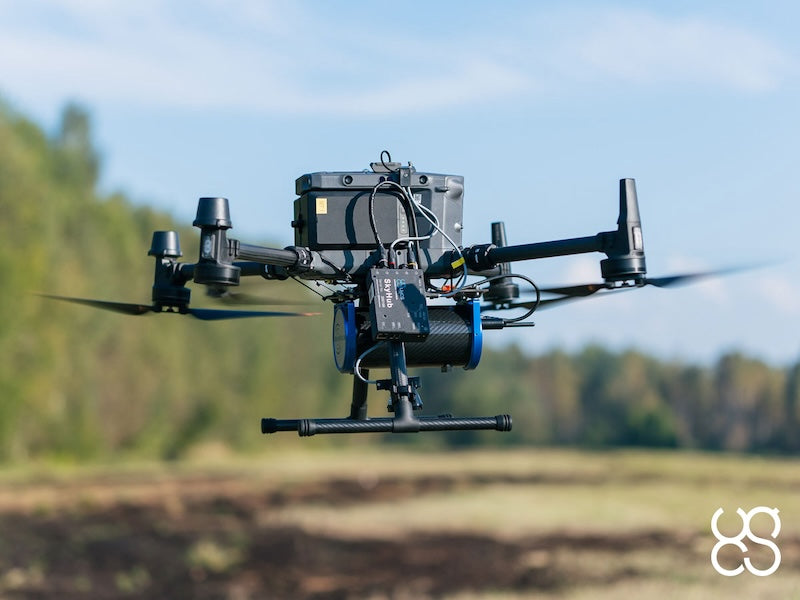

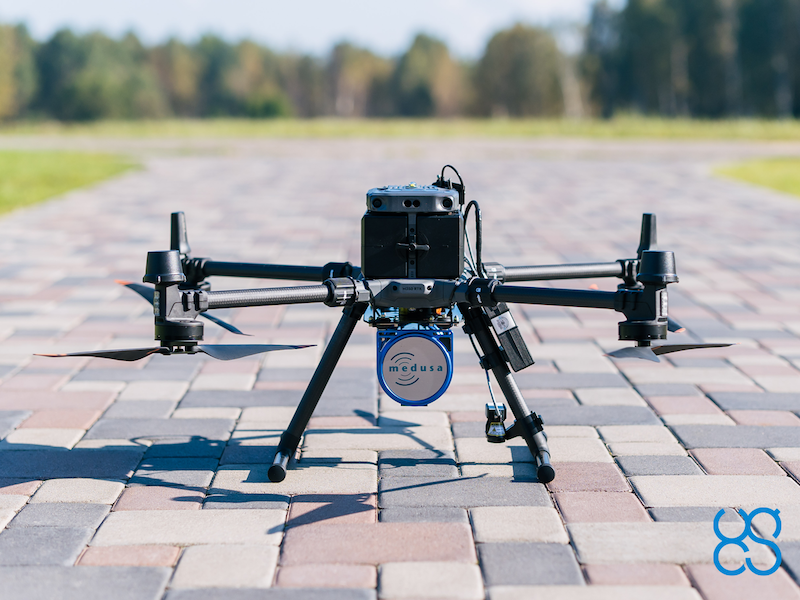

The Medusa Radiometrics MS-350 is a well-balanced sensor suitable for a variety of applications, yet compact and lightweight enough to be mounted on most popular drones such as the DJI M350 RTK or Inspired Flight IF800, as well as other drones with comparable payload capacities.
Recommended applications:
Includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.
HS Code: 90301000 (instruments and apparatus for measuring or detecting ionizing radiations)
Please note that additional components and software must be ordered to use gamma-ray spectrometer with drones. It is recommended to order a complete set. Please ask for the quote.
| Scintillation crystal | 350 ml Csl | |
| Mapping speeds | Up to 15 km/h | |
| Recording frequency | Up to 5hz | |
| Online Radionuclide analysis | 40K, 238U, 232Th and 137Cs | |
| Data | ||
| Format | JSON, NMEA, CSV | |
| Streaming | RS-232, Ethernet and Wi-Fi | |
| Internal storage | 16 GB (up to 500 hours of the recording) | |
| Connectivity | ||
| Wi-Fi | 2.4 and 5 GHz | |
| Ethernet | 100 Mbps | |
| Serial | RS-232 | |
| DOCUMENTATION & DATA SETS | ||
| Data Sheet | ||
| User Manual(s) | ||
| Data Samples | ||
| ENVIRONMENTAL | ||
| Operating temperature | -20 to +65 °C | |
| Ingress protection | IP65 | |
| MECHANICAL | ||
| Sensor dimensions & weight | 100 (⌀) x 215(L) mm 2.7 kg | |
| Packaging dimensions & weight | 42 cm X 50 cm X 23 cm 6 kg | |
| BATTERY | ||
| Input voltage | 5-35V | |
| Power consumption | 3W (avg), 6W (max) | |
| Airborne variant | Drone main battery is used to provide power | |
| Ground surveys | Up to 8 hours | |
| WHAT’S IN THE KIT | ||
| ||
