The ultralight F4 1S 5A AIO Brushless Flight Controller is back in stock with new and upgraded features. Compared to the previous version, the new board uses Serial ExpressLRS 2.4G instead of SPI ELRS 2.4G so that it can support ExpressLRS V3.0 and also has a Frsky RX version to choose from. We updated the FC with high-quality BMI270 gyro and BB51 ESC hardware. In addition, this new board supports the Betaflight Blackbox function.

Check out all our , and all our !

Specifications

• CPU: STM32F411CEU6 ( 100MHZ )
• Six-Axis: BMI270
• Built-in Receiver: Serial ExpressLRS 2.4G / Frsky SPI
• Receiver antenna: Line antenna
• Size: 30mm x 30mm, fully mounting pattern compatible with the whoop frame in the current market
• Firmware version: betaflight_4.3.1_BETAFPVF411
• OSD: Built-in BetaFlight OSD
• Recommend VTX:
• Power Cable: 55mm, with BT2.0 connector

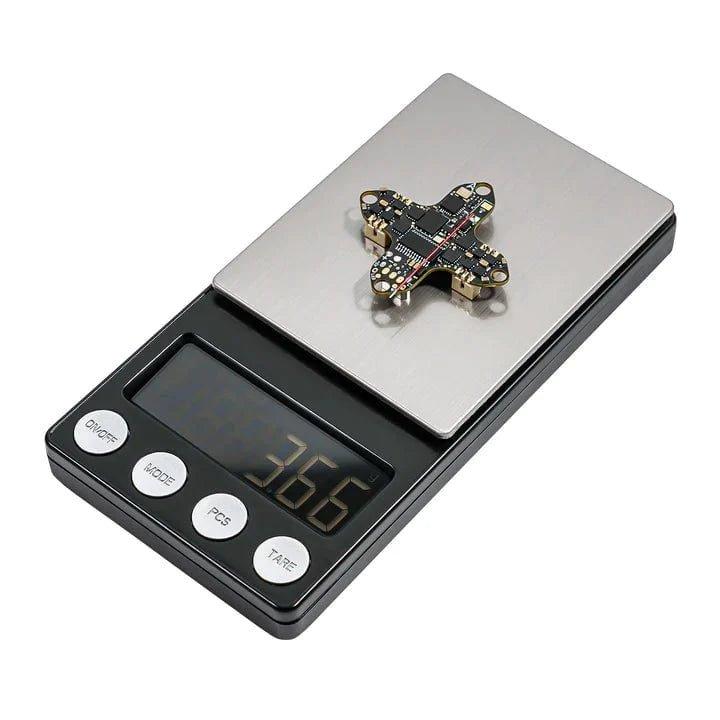

• Weight: 3.6g (Without power cable included)

• Power supply: 1S
• Current: 5A continuous and peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: A_X_5_.HEX for BB51 BLHeli_S hardware
• Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

Includes

• 1x BetaFPV F4 1S 5A Toothpick/Whoop Flight Controller - Choose Version
• 4x M1.2x4mm Screws
• 4x M1.4x5mm Screws
• 4x Anti-vibration Rubber Dampers

Wiring Diagram
