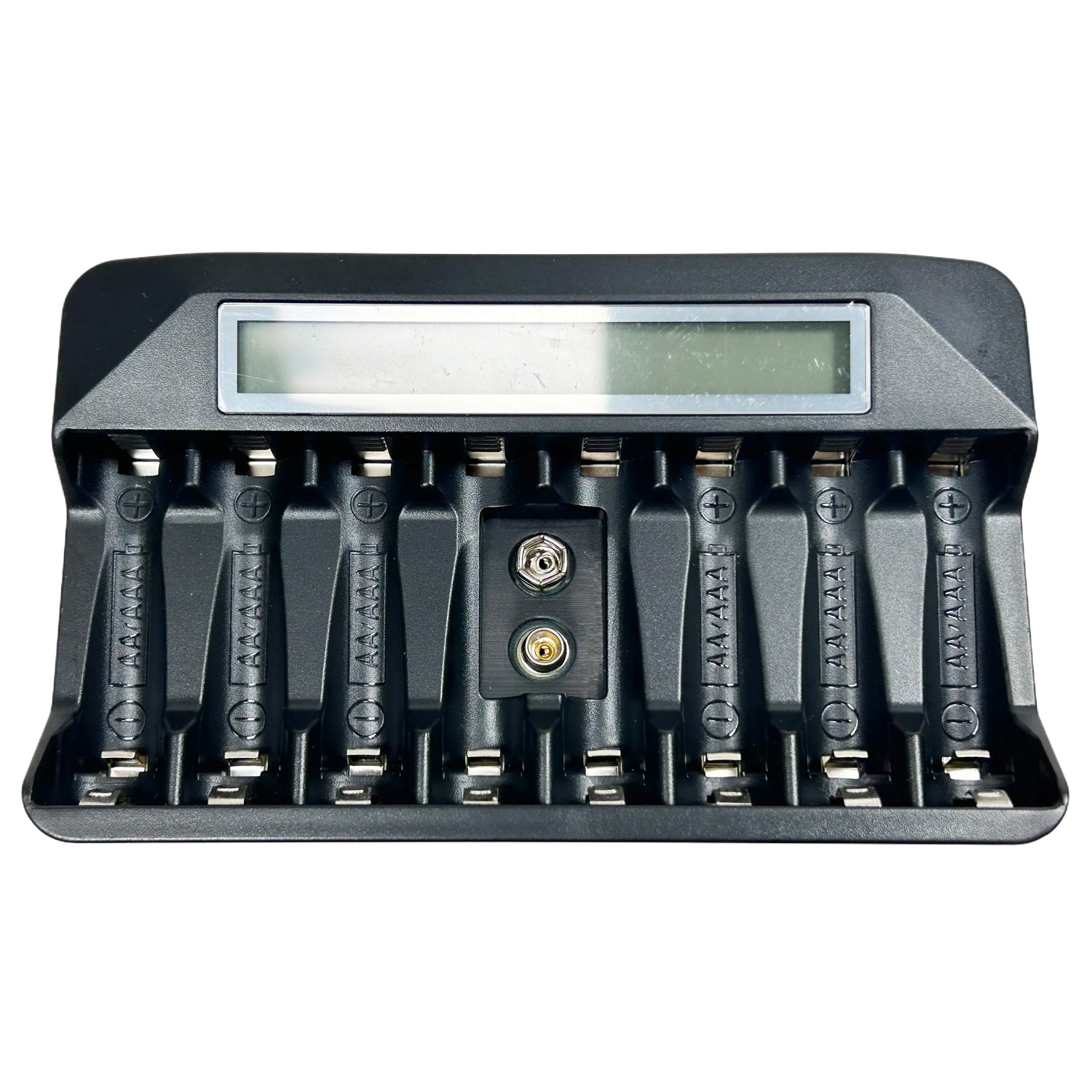

Experience efficient and convenient charging with our 9V AA AAA Battery Charger! This 2-in-1 multifunctional charger features 8 battery bays - including 1 designated for 9V (Ni-MH, Ni-Cd, Li-ion) batteries and 8 independent slots for AA and AAA batteries (Ni-MH, Ni-Cd). The Intelligent LCD Display Screen provides a complete view of each battery's charging status and quick battery detection technology for identifying defective batteries. Trust in our expertly designed charger for all your battery needs.

Charging Combinations:

Independent 9 Charging Slots

1. Max 8AA/AAA Charging at a time

• 8x AA or AAA in any combination

2. Max 6AA/AAA + 1x 9V Charging at a time

• 1-6x AA or AAA and 1x 9V in any combination


Features:

• Bad Battery Detection
• Auto-Stop Function
• Over-Charging Protection
• Over-Voltage Protection
• Over-Current Protection

Battery Size Compatibility:
AA, AAA, 9V

Battery Chemistry Compatibility:
Ni-MH Ni-Cd (for AA/AAA), Ni-MH Ni-Cd Li-ion (for 9V)

Charger Battery Application

• Flashlight
• Clock
• Smoke detector
• Toy car
• Thermometer
• Multimeter
• Digital Camera
• Security cameras
• Remote controller
• Electric shaver
• Microphone

How does the charger work

During the charging cycle, the charger displays the total energy delviered to the battery. Depending on such factors, temperature, the remaining energy in the battery, condition of the battery, the charging cycle may consist of an intial charging, fast charging or trickle charging. The sequenece is closely monitored by the microprocessor unit to provide ultra-fast-charging. For low capacity (mAh) batteries, the charging time is shorter.

What is Battery Self-Discharge

All batteries show a decline in charge over time.

High temperature is the main factor of self-discharge. The speed of NiMh batteries self-discharge is approximately seven times faster in 45 deg C than in 20 deg C. Age of batteries is also a factor. Old batteries self-discharge faster than new ones.

Quick Start

Please follow these steps to get a Quick Start using the Battery Charger:
1. Insert batteries into the charger properly.
2. Connect the charger cable to the charger.
3. Connect the charger cable to the power source.
4. The LCD display will light up to indicate the corresponding battery icon and the words "Charging" will appear.
5. When fully charged, the icon stops flashing and the words "Charging" will disappear. "Fully Charged" will appear instead.
6. Remove the batteries from the charger when batteries are fully charged.

Quick Guide

If the battery is fully charged and the power is accidentally disconnected, the charge will be retained. Upon inserting the battery back into the charger, the LCD may light up as though charging but this will stop after a few minutes. No charge has been lost

When the battery icon stops flashing, the charging is completed. Unplug the charger and remove the batteries when fully charged or not in use.
