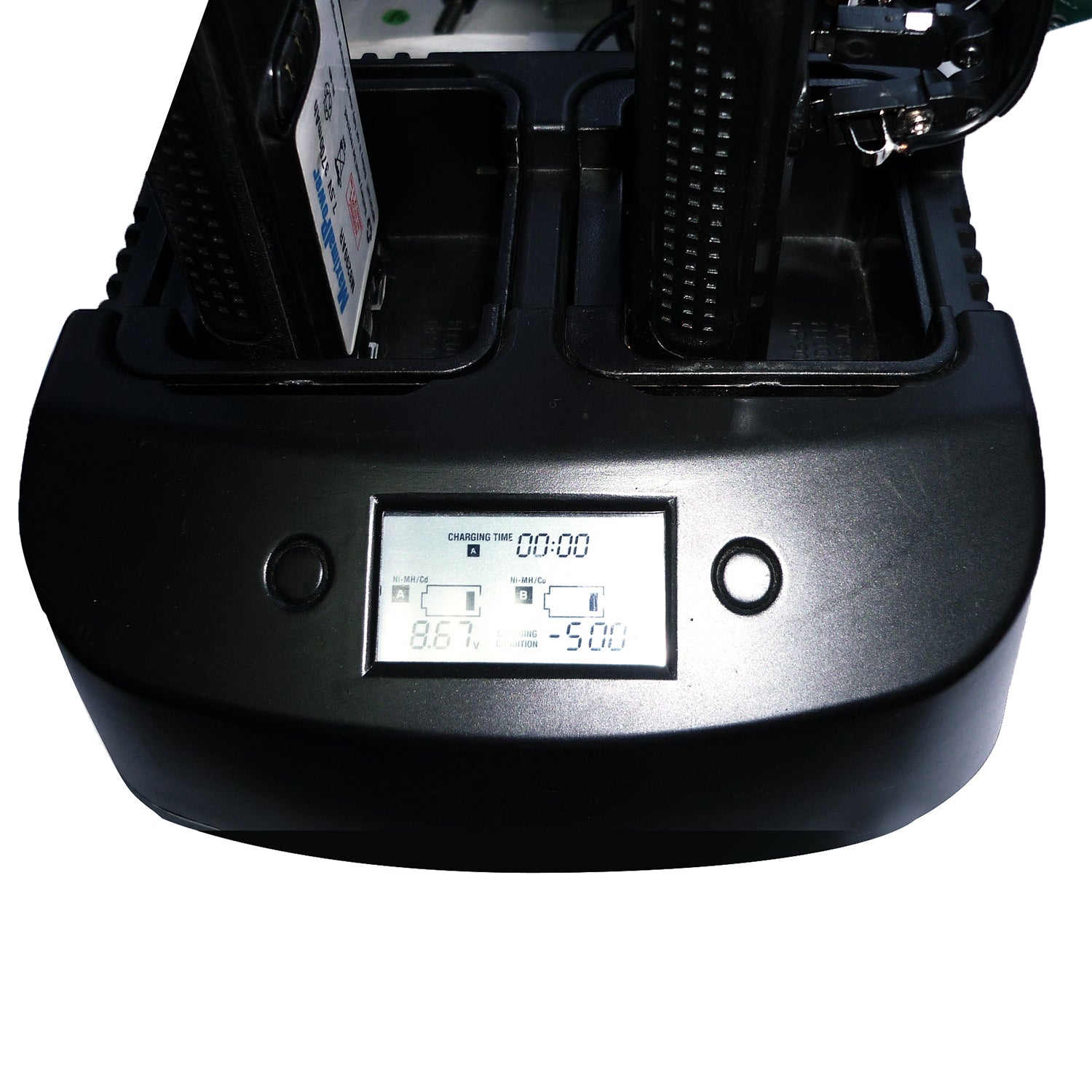

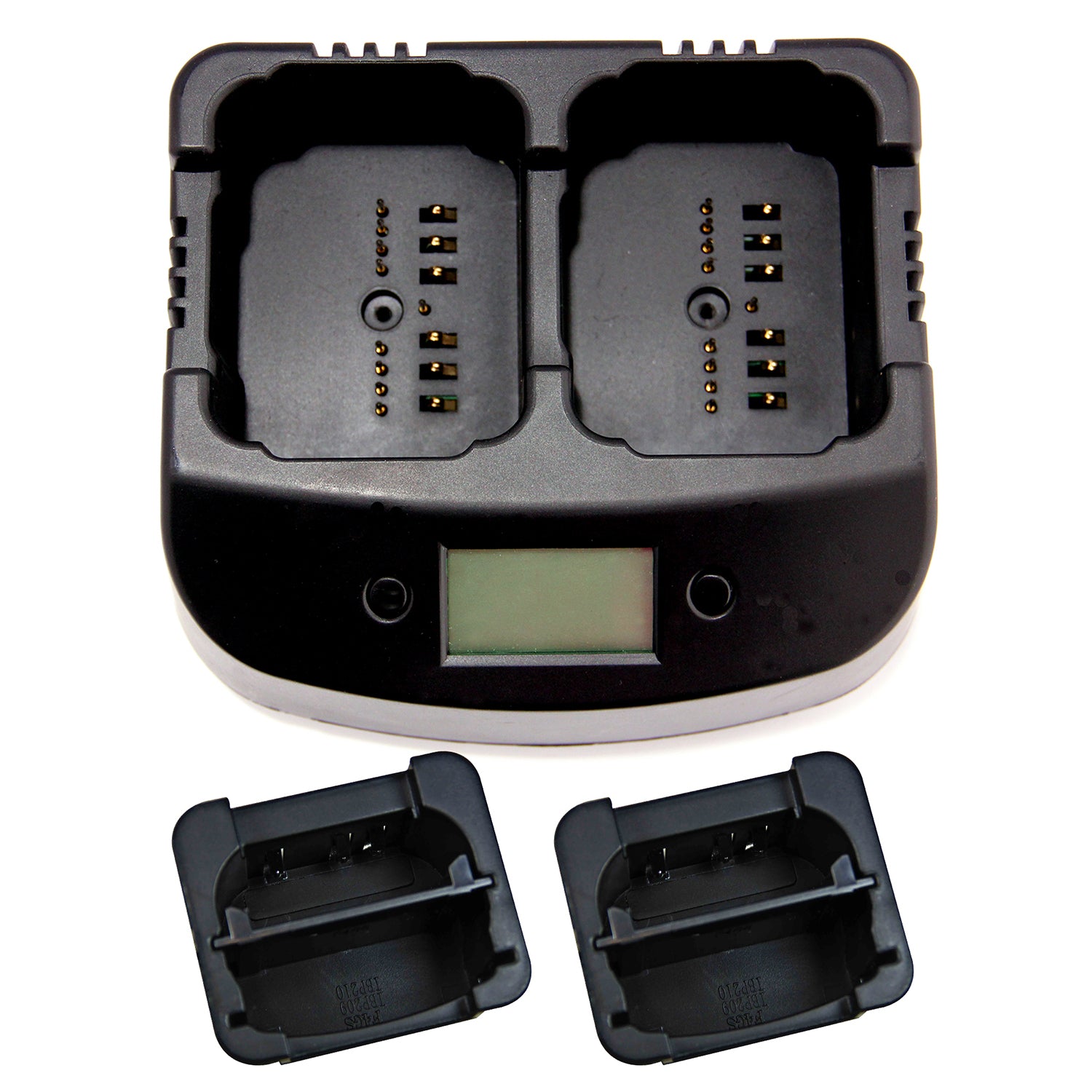

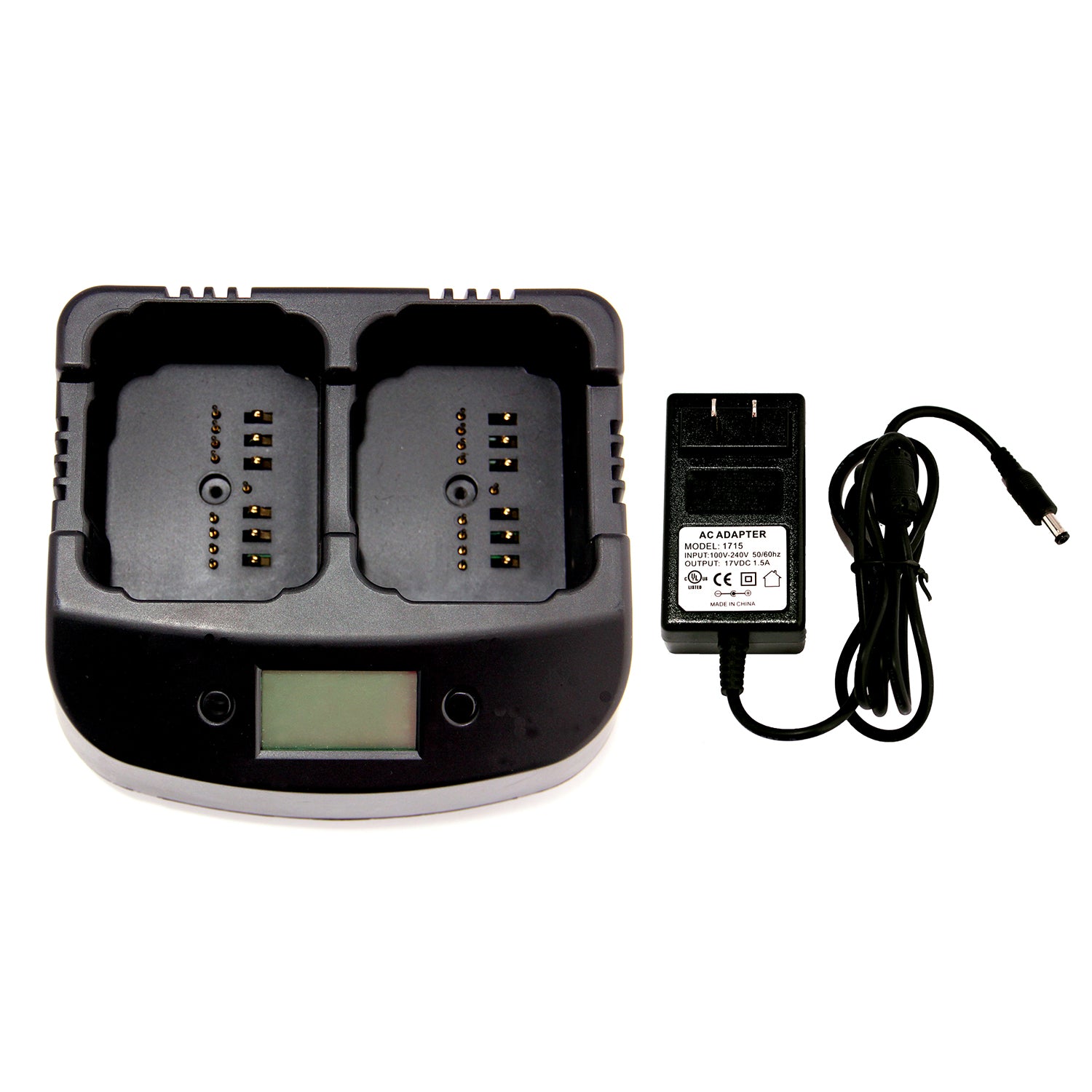

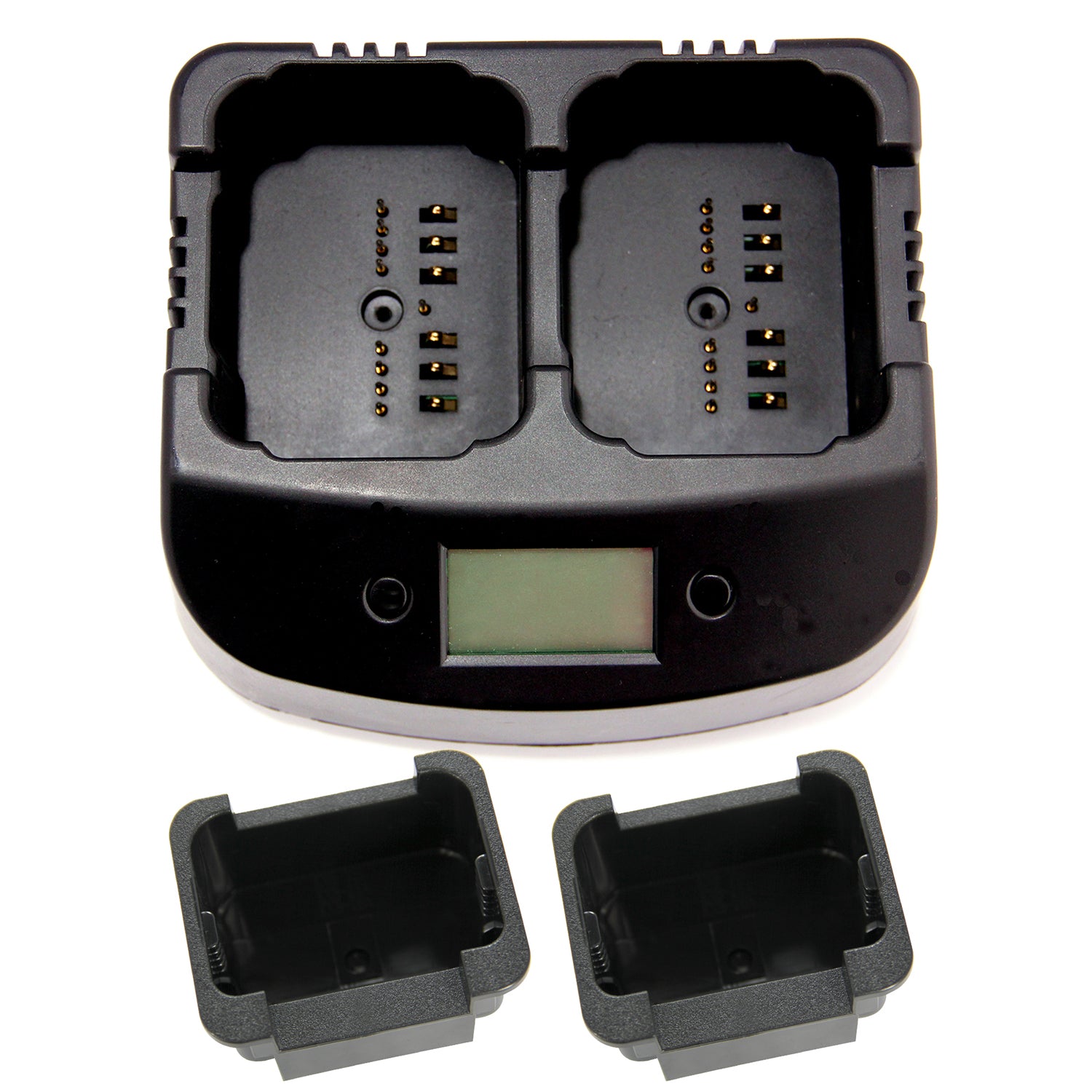

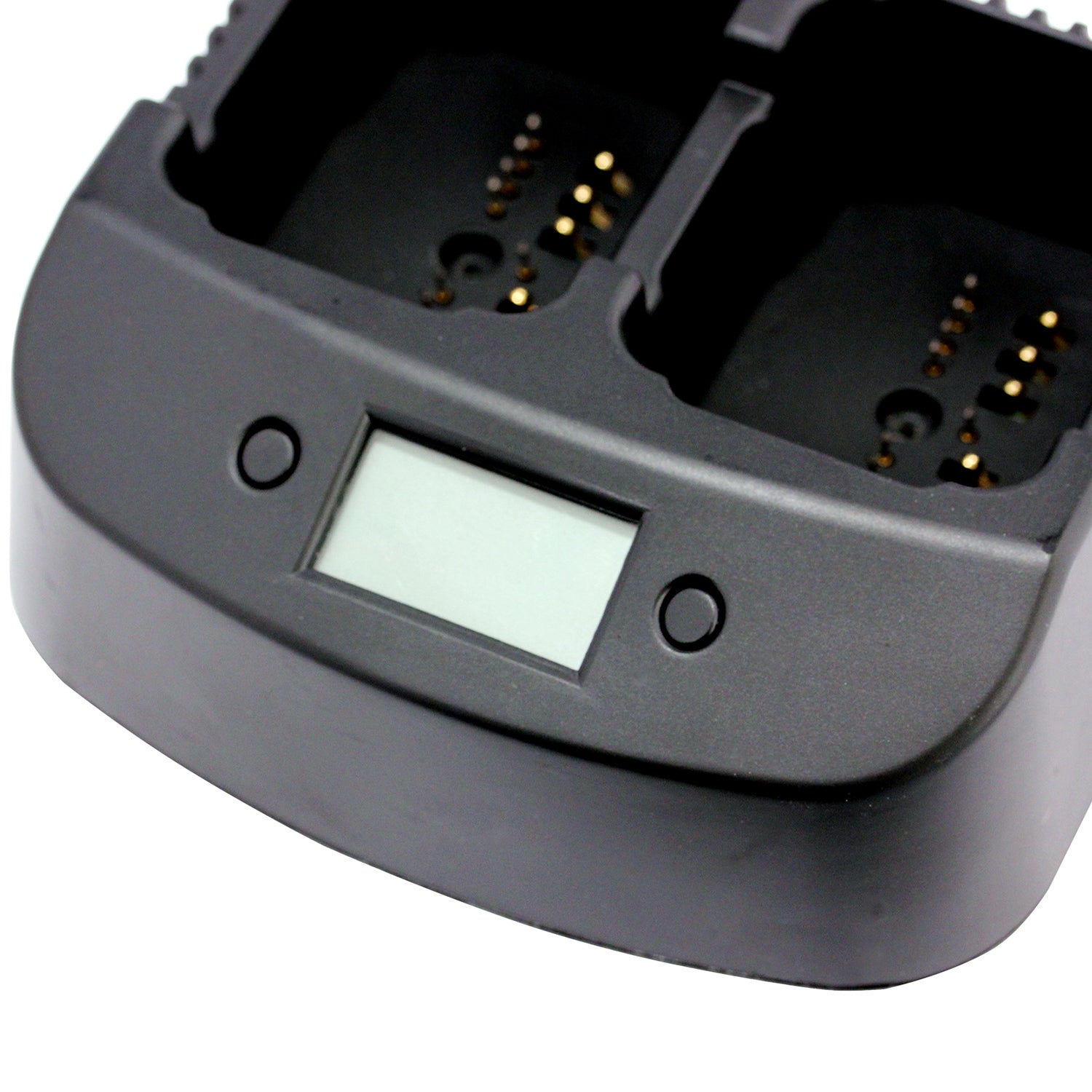

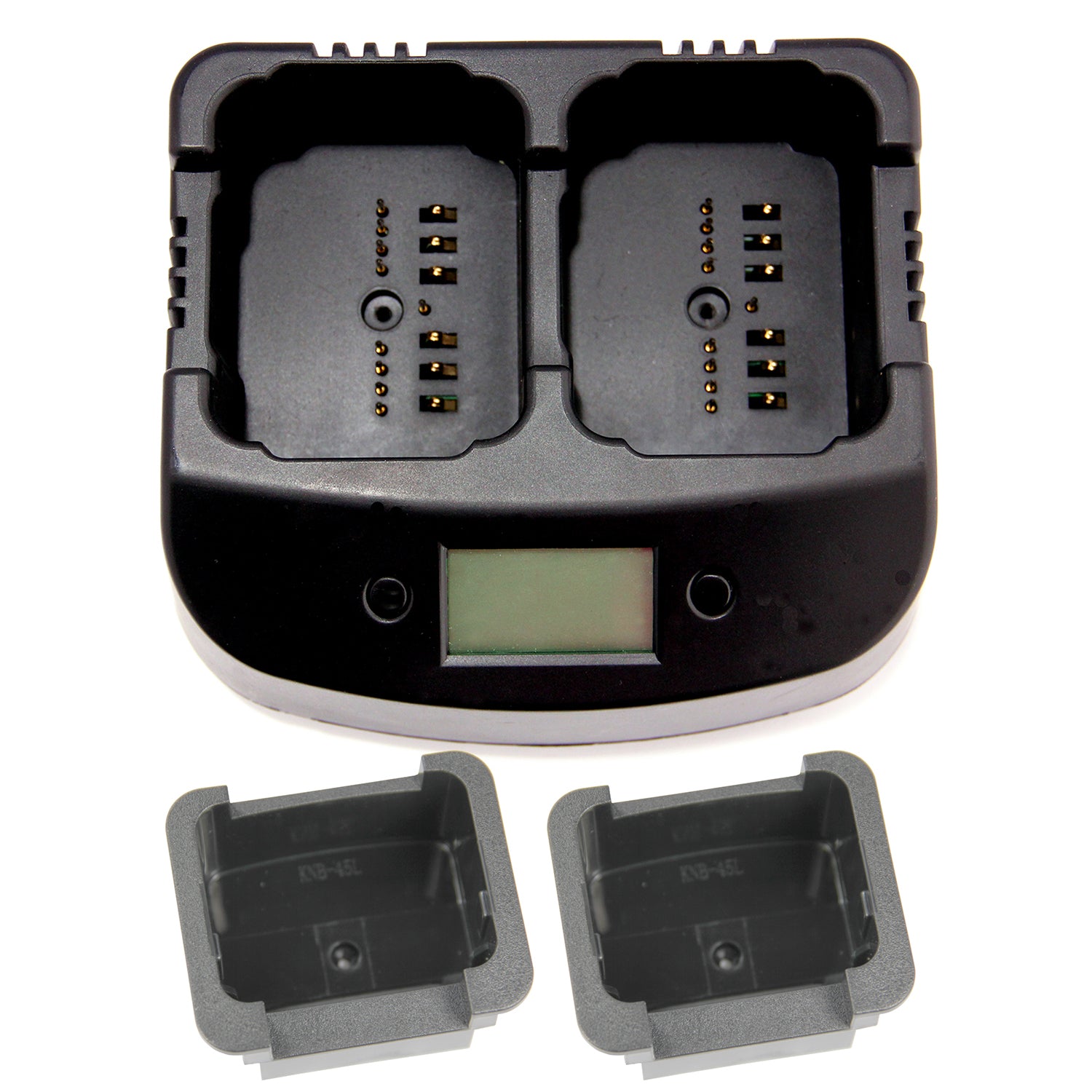

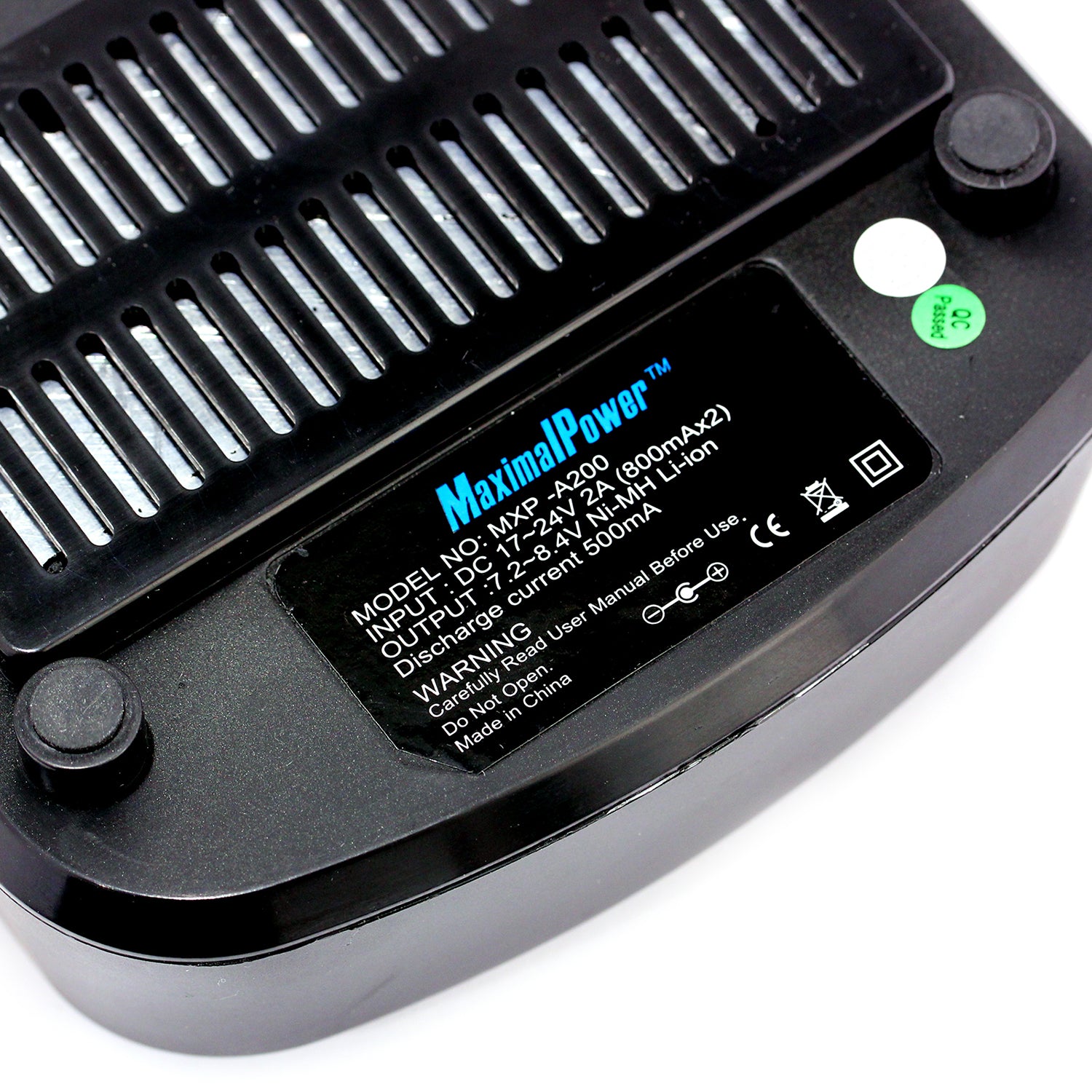

MaximalPower's Dual Port Radio Battery Charger can be used with Li-ion, Ni-MH, and Ni-Cd battery packs while on or disconnected from the radio. The DC input is 13.5V~24V Lithium/LiPo1~3 Cells Ni-MH/Ni-Cd 2~8 Cells, and the AC Plug is an American type flat pin (For EU/AU, you'll need a separate converter for this unit).
BATTERY CHARGER FACTORY DEFAULTS
| CHARGE SETTINGS | |
Charge Mode | Lithium/LiPo | NiMH/NiCd |
Current (Maximum) | 1A | 1A |
Pack Voltage | 7.4V / 2 Cells | 7.2V / 6 Cells |
Trickle | - | 40mA |
Cut-Temperature | 0-50c | 0-60c |
Safety Time | 6 Hours | 6 Hours |
| DISCHARGE SETTINGS | |
Current | 500mA | 500mA |
Pack Voltage | 7.4V / 2 Cells | 7.2V / 6 Cells |
Cut-off Voltage | 3.0 V/Cell | 1.0/Cell |
Cut-off Temperature | 0-55c | 0-70c |
| ANALYZER MODE | |
| Lithium/LiPo | Ni-MH/Ni-Cd |
ANALYZE | [Charge] > Wait 15 min > [Discharge] > [Charge] > [Complete] | [Discharge] > [Charge] > Wait 15 min > [Discharge] > [Charge] > [Complete] |
REFRESH | [Discharge] > [Charge] > [Complete] | [Discharge] > [Charge] > [Complete] |
DISCHARGE | [Discharge] > [Complete] | [Discharge] > [Complete] |

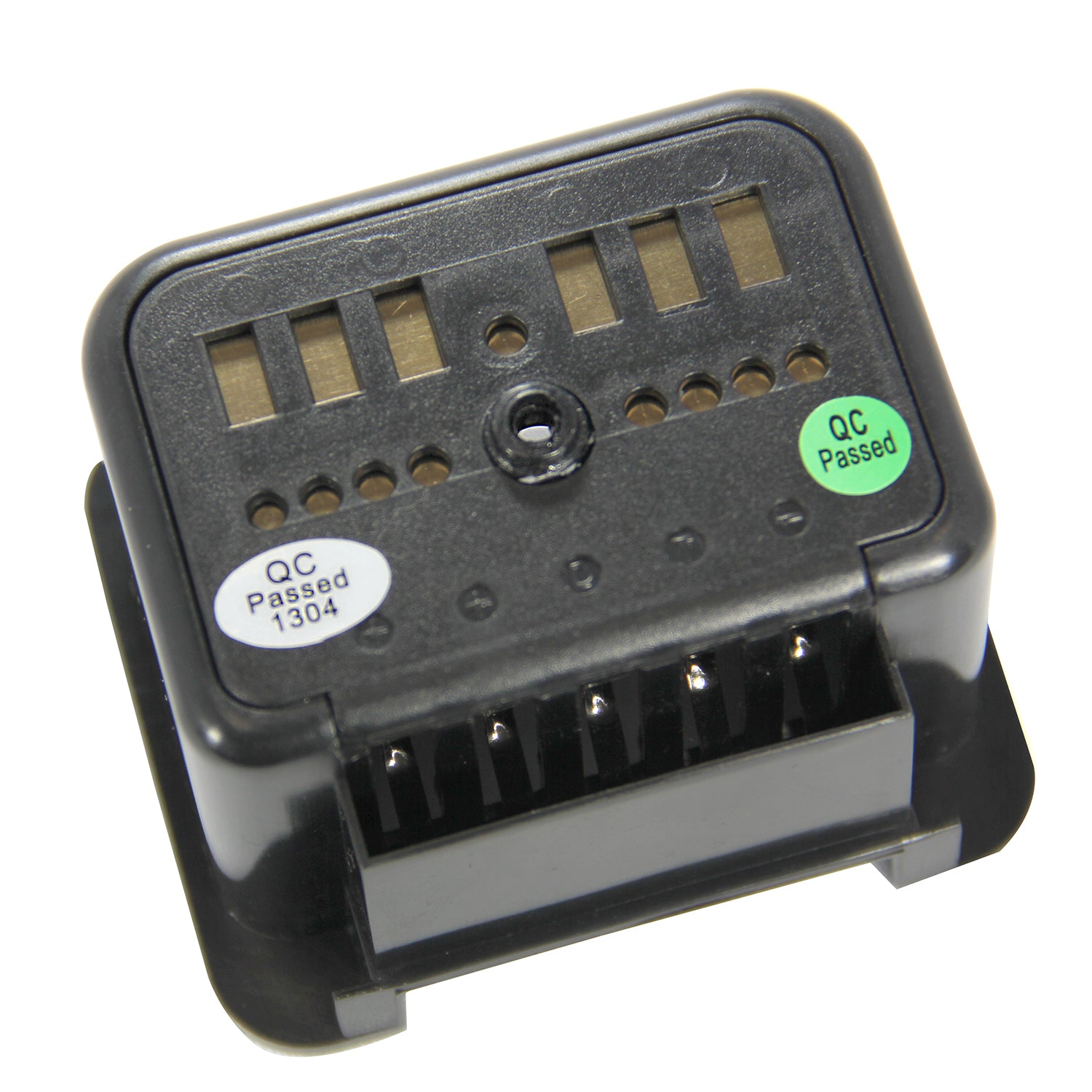

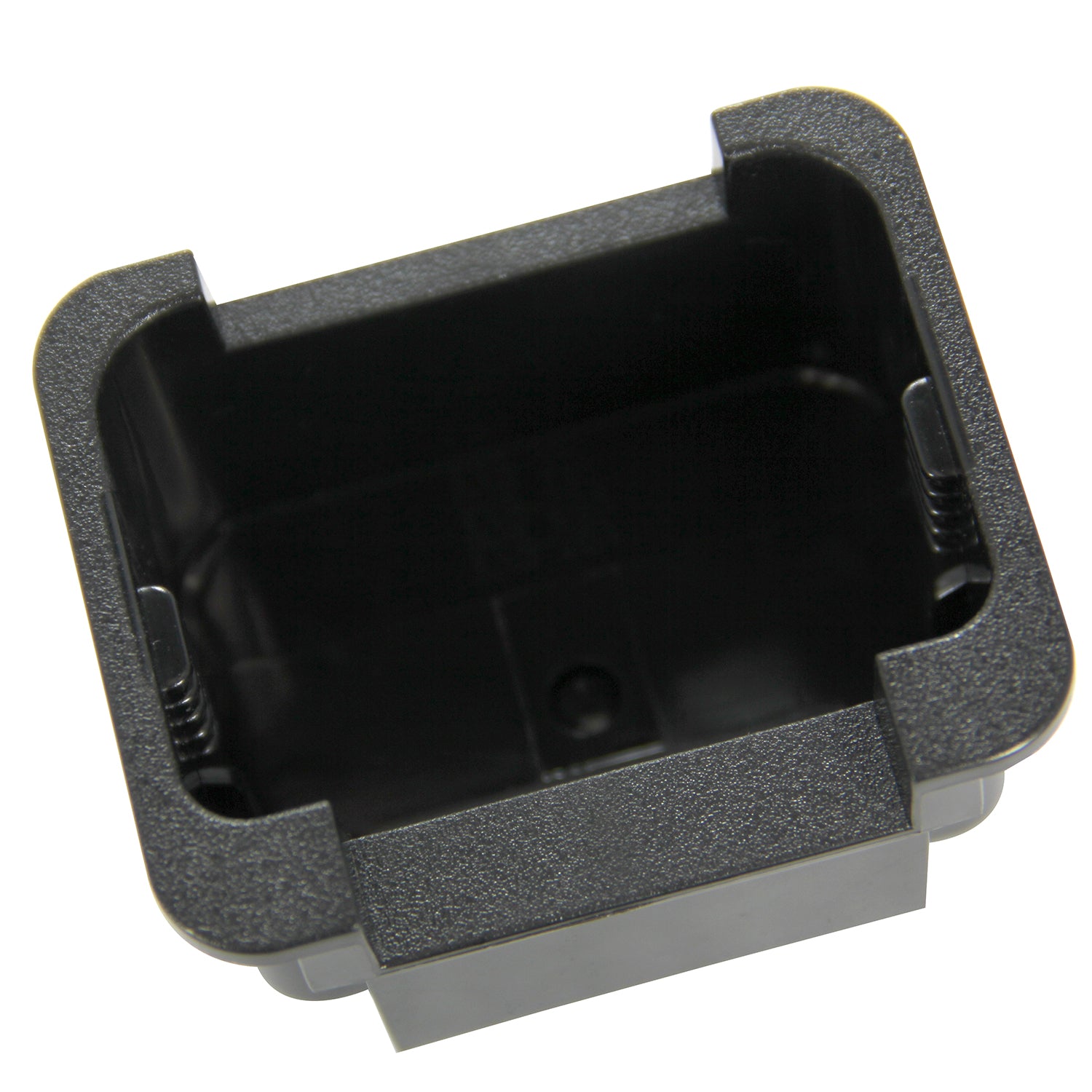

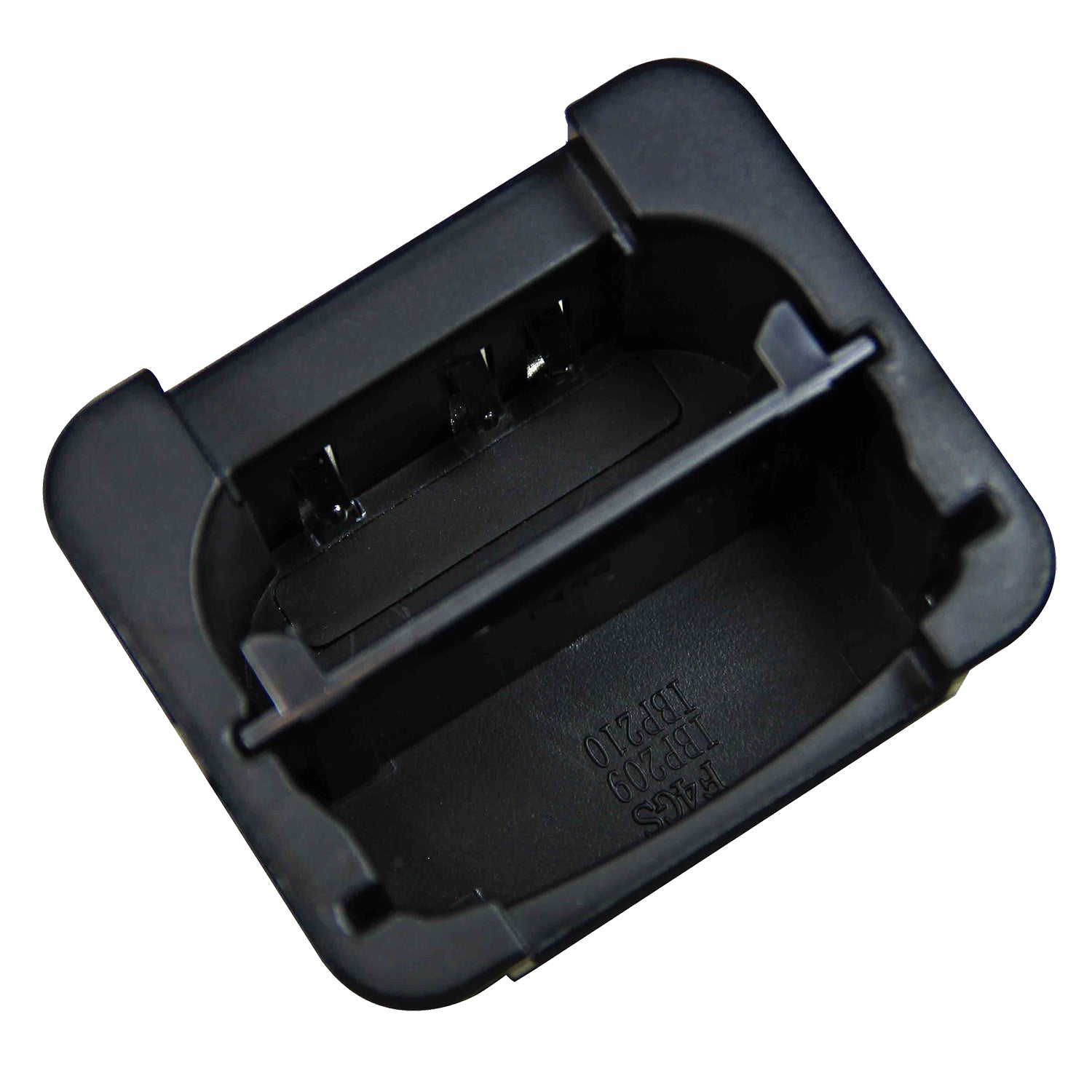

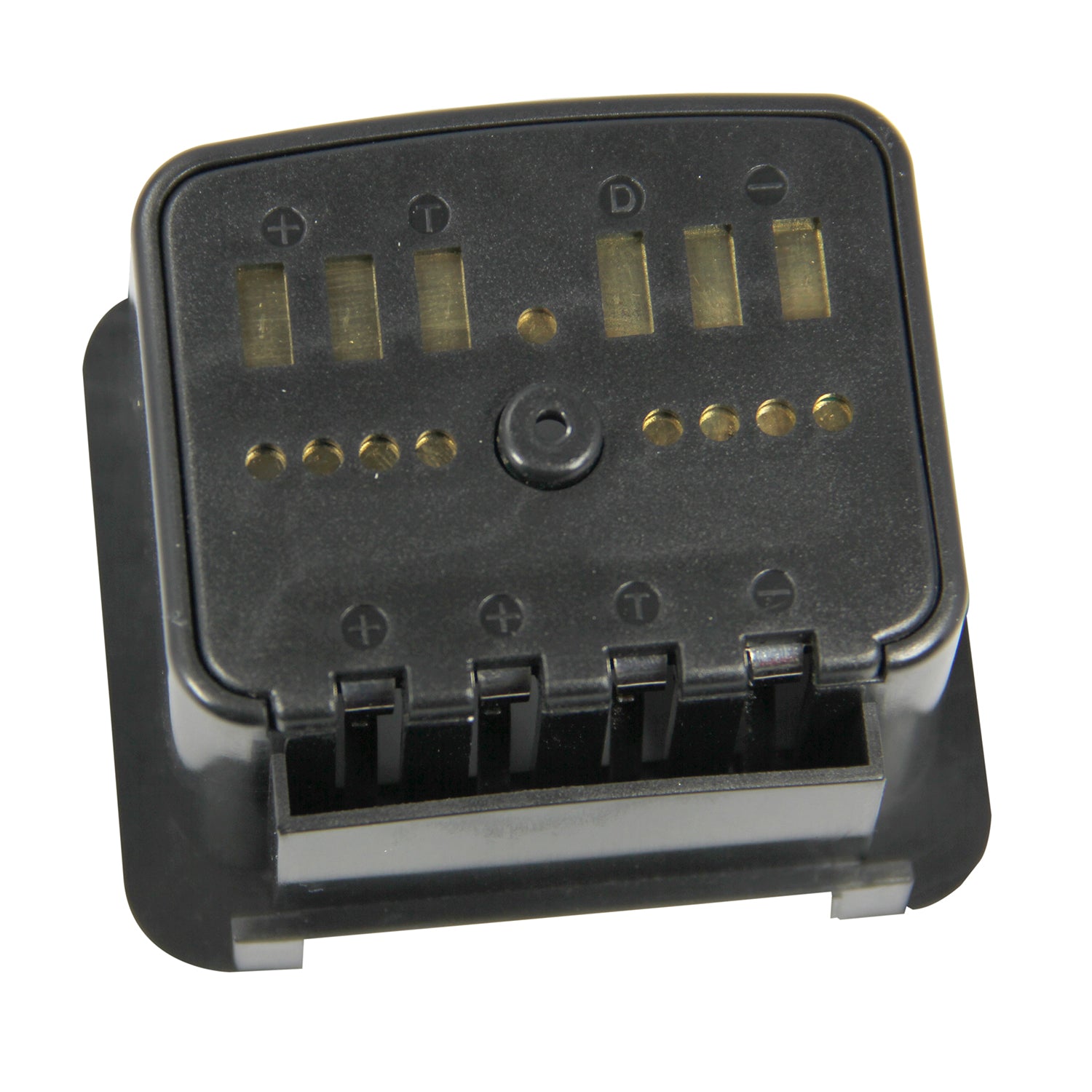

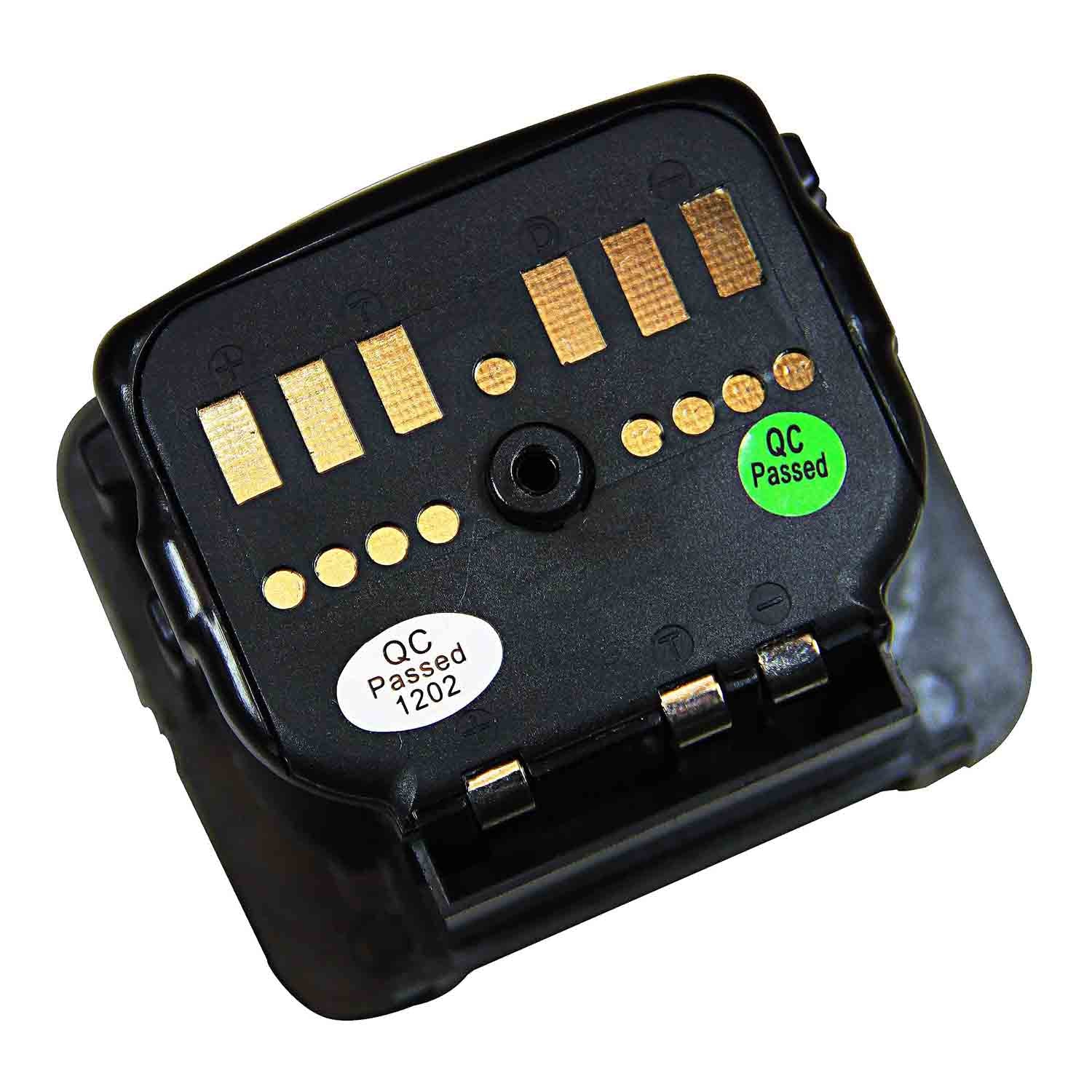

RB-POD COMPATIBILITY
OEM PART NO. | COMPATIBLE MODEL NO. |
KNB-24, KNB-24L, KNB-35 & KNB-35L (SKU: 0501x2) | KENWOOD TK-2140, TK-3140, TK-2148, TK-3148, TK-2160, TK-3160, TK-2168, TK-3168, TK-2170, TK-3170, TK-2173, TK-3173 |
KNB29, KNB29N, KNB29A, KNB30, KNB30A, KNB45 & KNB45L (SKU: 0887x2) | KENWOOD TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207 & KSC37 Radios |
KNB-16, KNB-16A, KNB-21, KNB-21A, KNB-21N, KNB-22 & KNB-22N (SKU: 0941x2) | KENWOOD Portable Radio TK-190, TK-280, TK-380, TK-290, TK-390, TK-480, TK-481, TK-5400 |
