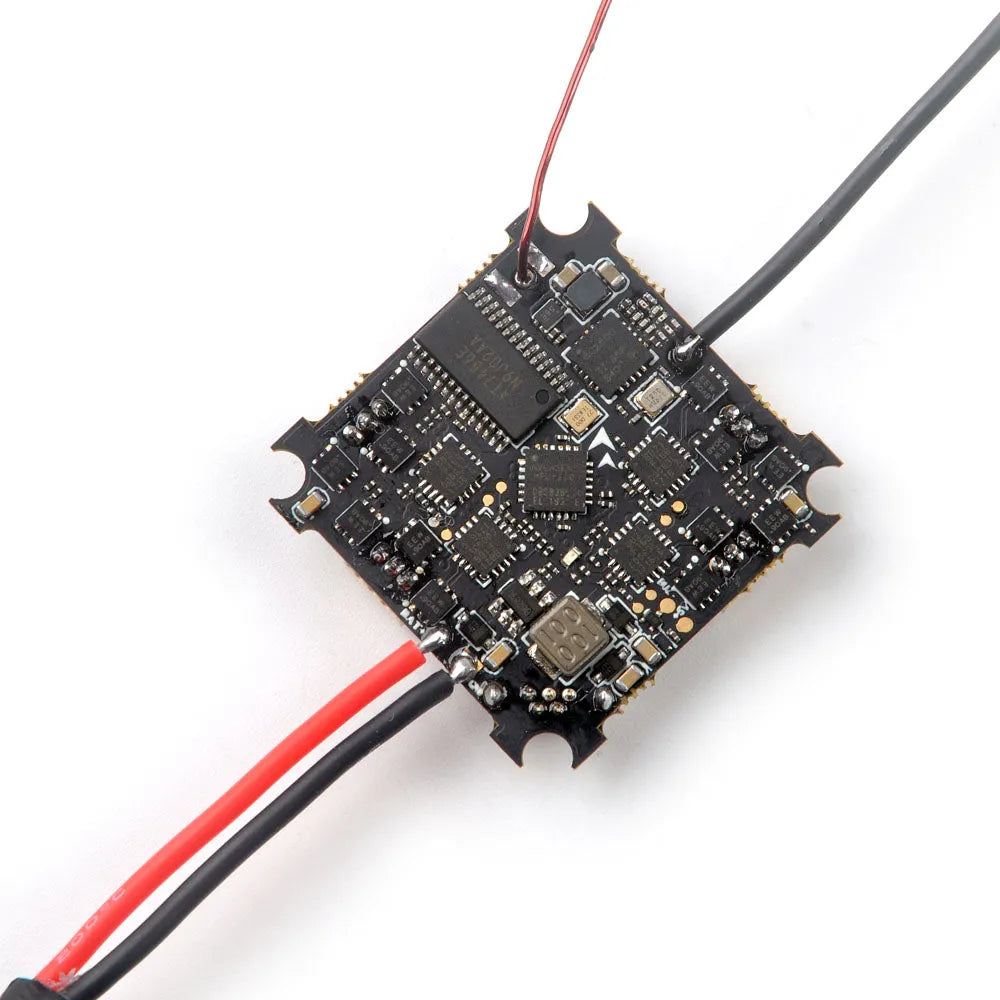

Happymodel Mobula6 Part Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX for RC Drone
Specificaiton:
Brand Name: Happymodel
Item Name: Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX
| Crazybee F4 LiteFlight Controller Built-in ESC & Receiver & VTX | Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard Frsky Receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model - Frsky_x_lbt Support EU LBT Radio Transmitter Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m |
| Onboard Flysky Receiver Version | SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support |
| Onboard 5A BLheli_S 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT600 |
| Onboard 5.8G 40CH 25mW VTX | Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band |
Package Included:
1x Crazybee F4 Lite Flight Controller
4x Anti-Vibration Ball
4x Screws
