Mini AIO FPV Camera 5.8G 40CH 25mW  800TVL Video Transmitter

Features:
PV Micro AIO Camera 5.8G 40CH 25mW Transmitter with micro JST 1.25 to 2 Pin wafer cable 1.5cm Y splitter for tiny whoop Blade Inductrix .

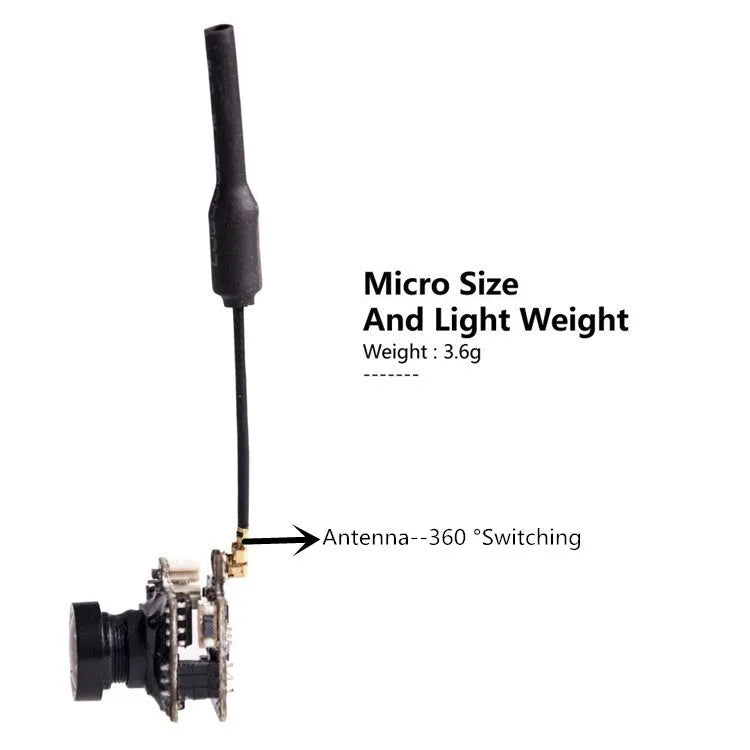

Light weight only 3.6g, Small size with 47 * 14.8 * 12.5 mm.
Supporting touch switch select channel Frequency group,Supporting NTSC/PAL switch, Support vertical inverted image switch.
8LED display channel and 6LEDS display frequency group information, 1LED display PAL/NTSC and FLIP information.
Wide lens angle. Miniature and light weight design

Specifications:
Output power: 25mW
Supply Voltage: 2.9-5.5v

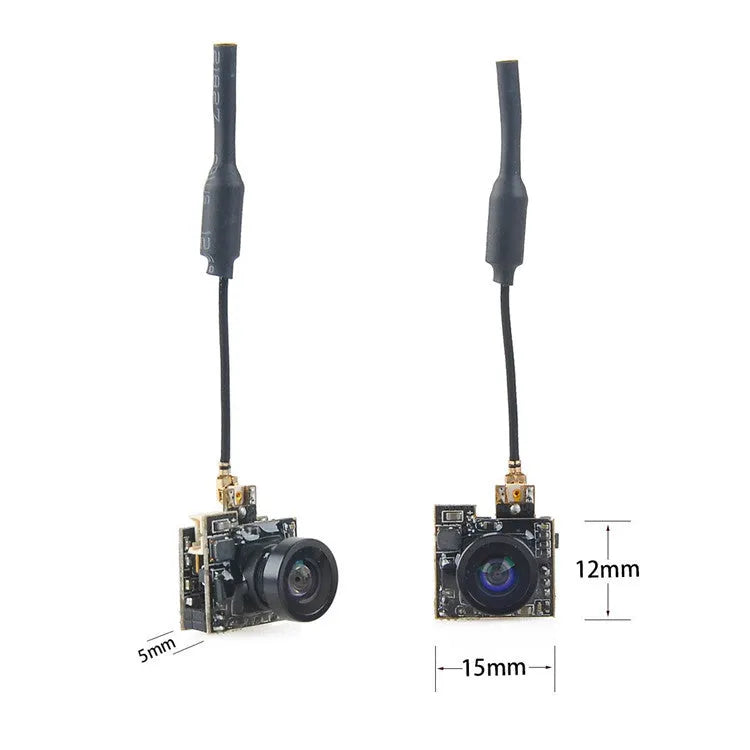

Size : 47 * 14.8 * 12.5 mm

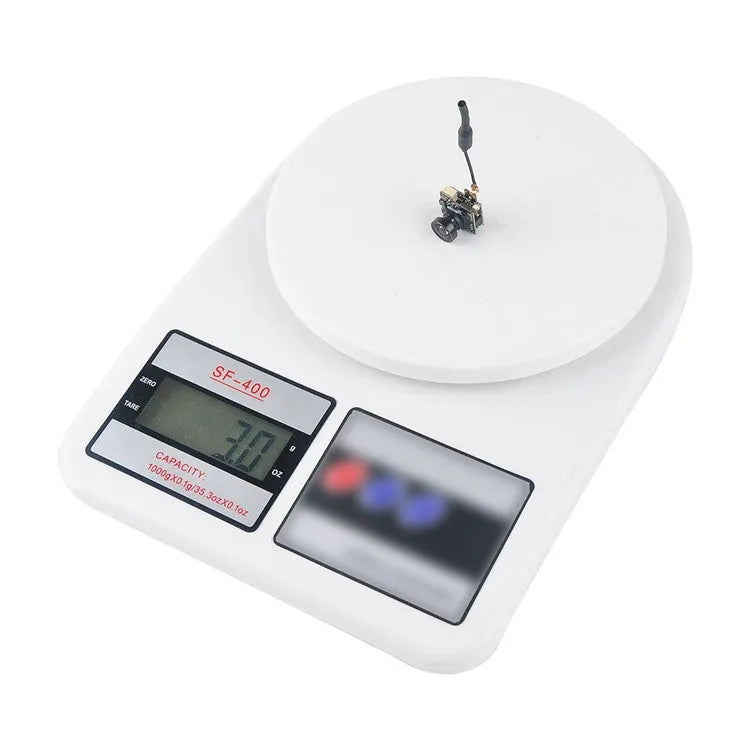

Weight: 3.6g
Antenna: Exclusive Dipole Whip Antenna
Power consumption: 200~215MA@5V DCIN
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5362~5945MHz
Field of view: 120 degrees viewing angle
Operating Temperature: -10℃~+60℃
Ambient temperature::25℃
Channel SEL:Touch Switch
Channel Indicate:CH1~CH8 Channel indication with 8LEDS and A~F frequency, group
Indicate with 6LEDS
Modulation type:FM
Transmit power: 13±1dBm
Frequency control: PLL
All harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel Carrier error: 1dB
Antenna Port: 50 Ω
SENSOR:PAL: 720X540/NTSC:640X480 1/4”
LENS ANGEL: H:120°/V:100°
Base-band interface: (P1.27*2)
Profile dimension: 14.5mm*12.2mm+14.5mm*12mm

Package included:
1x Mini AIO FPV Camera 5.8G 40CH 25mW  800TVL Video Transmitter
