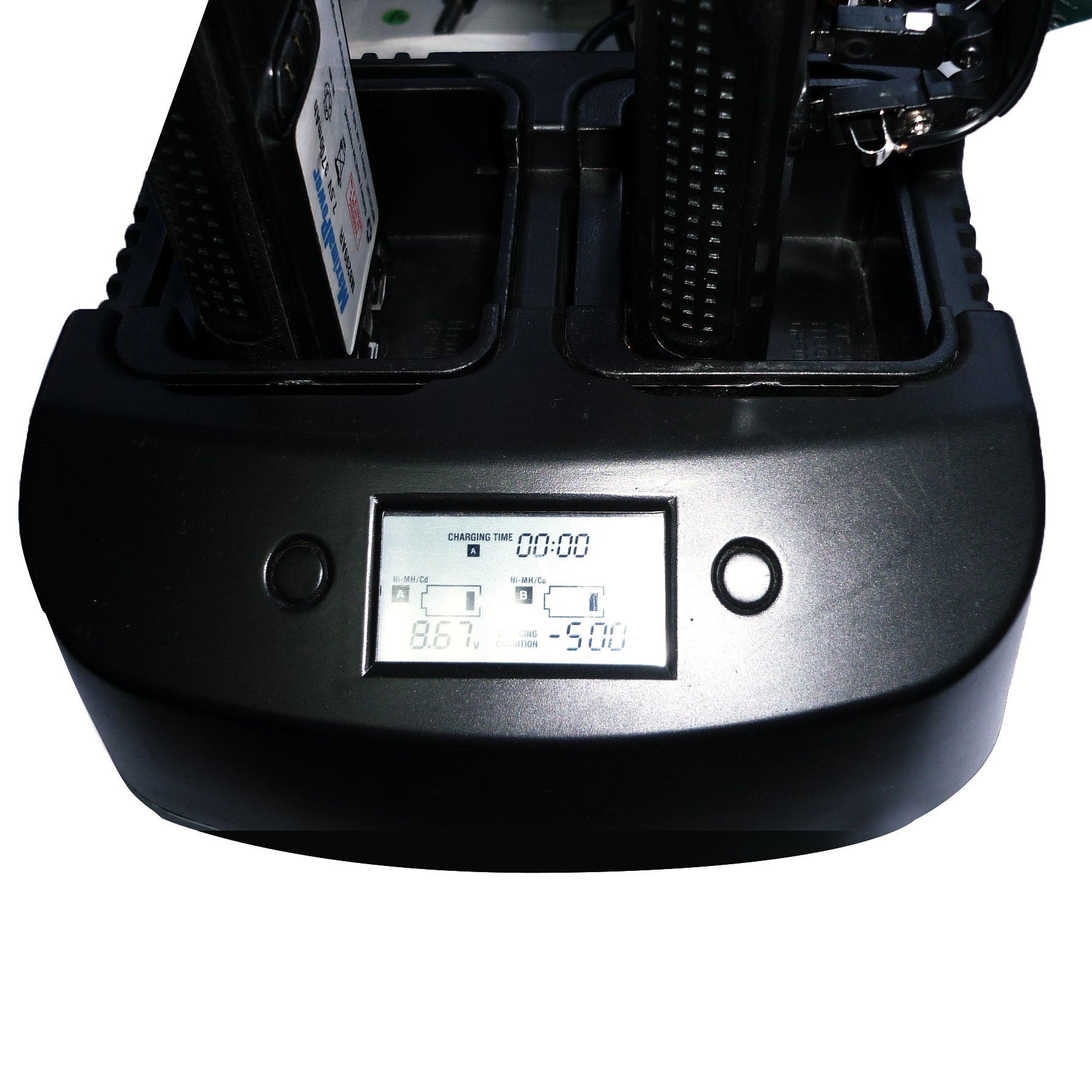

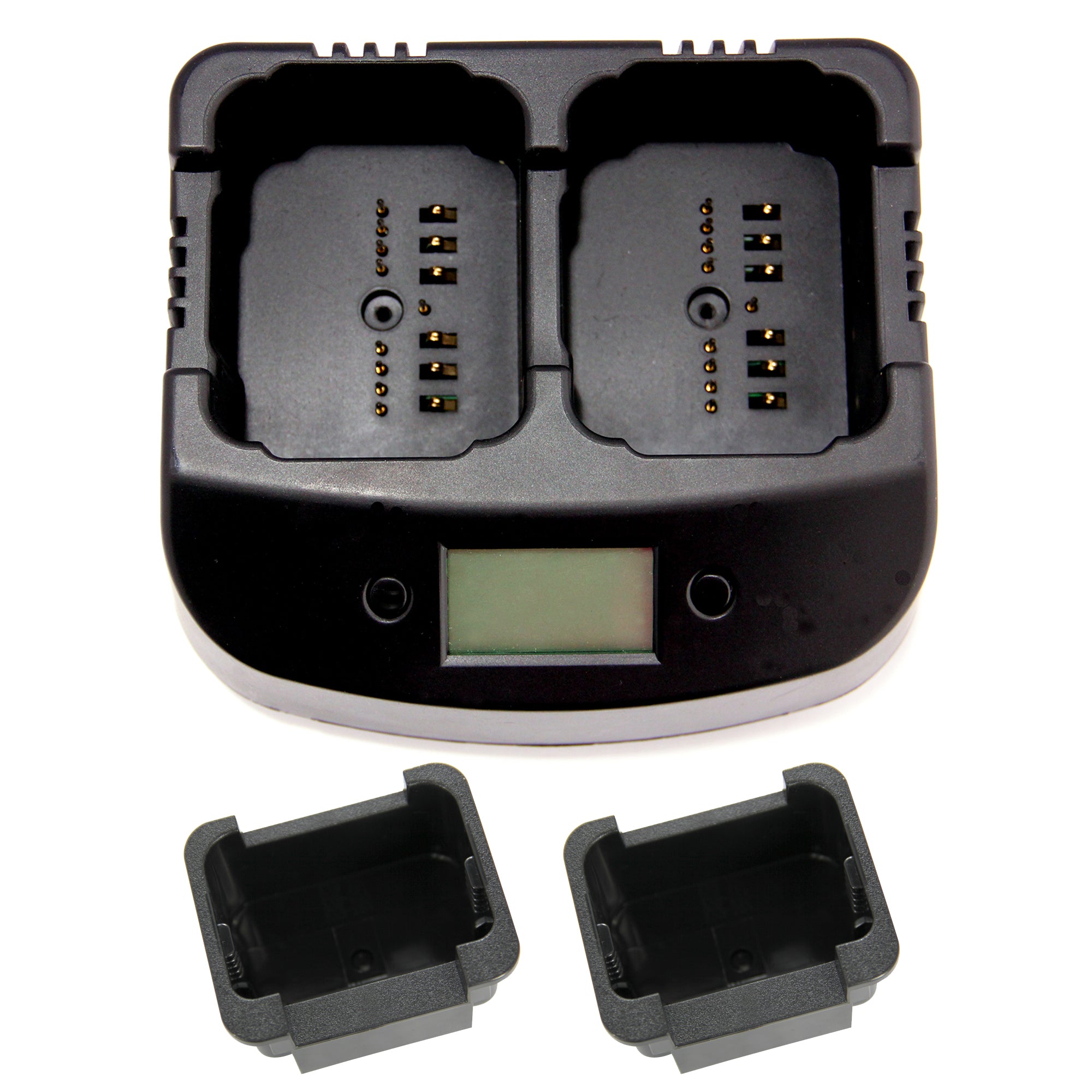

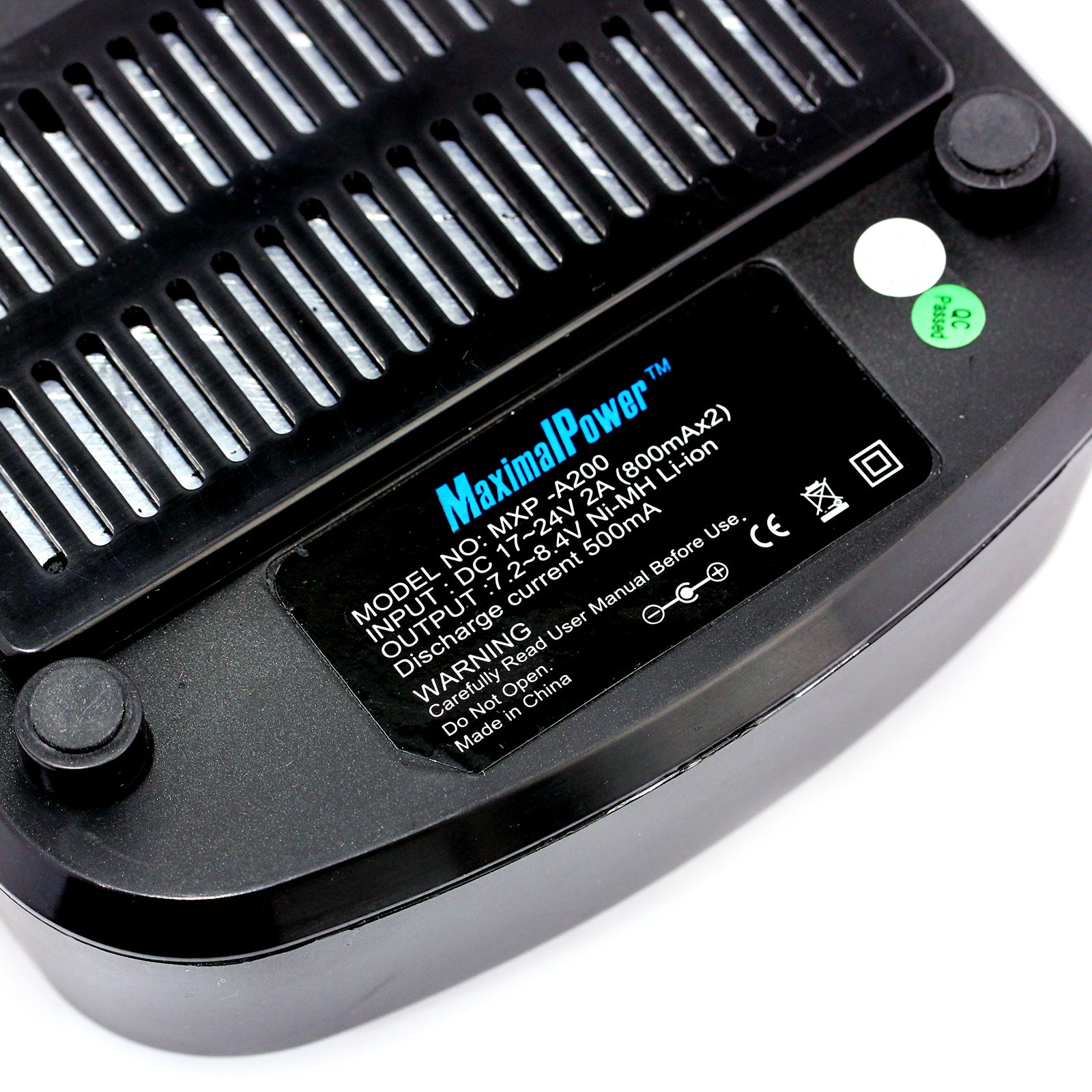

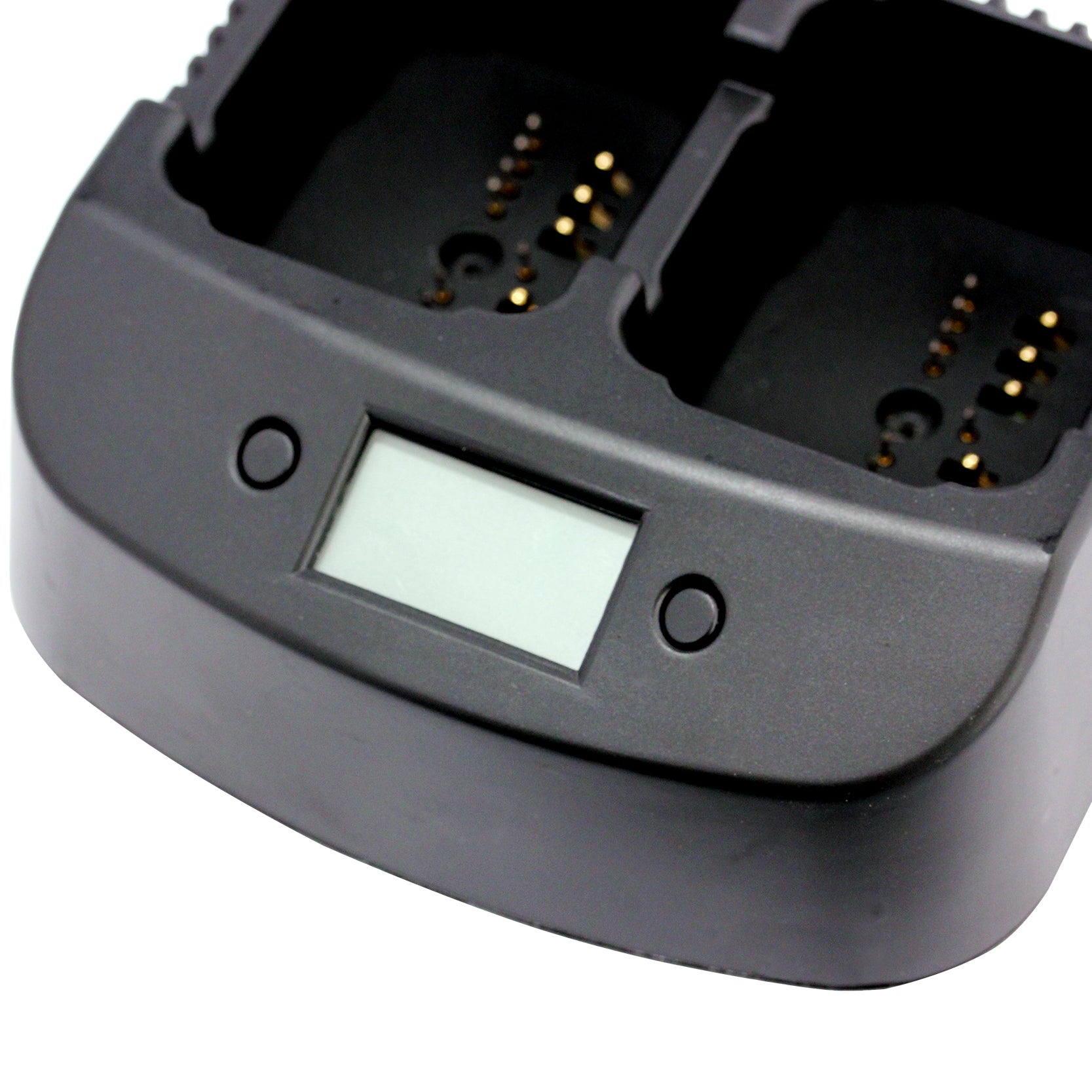

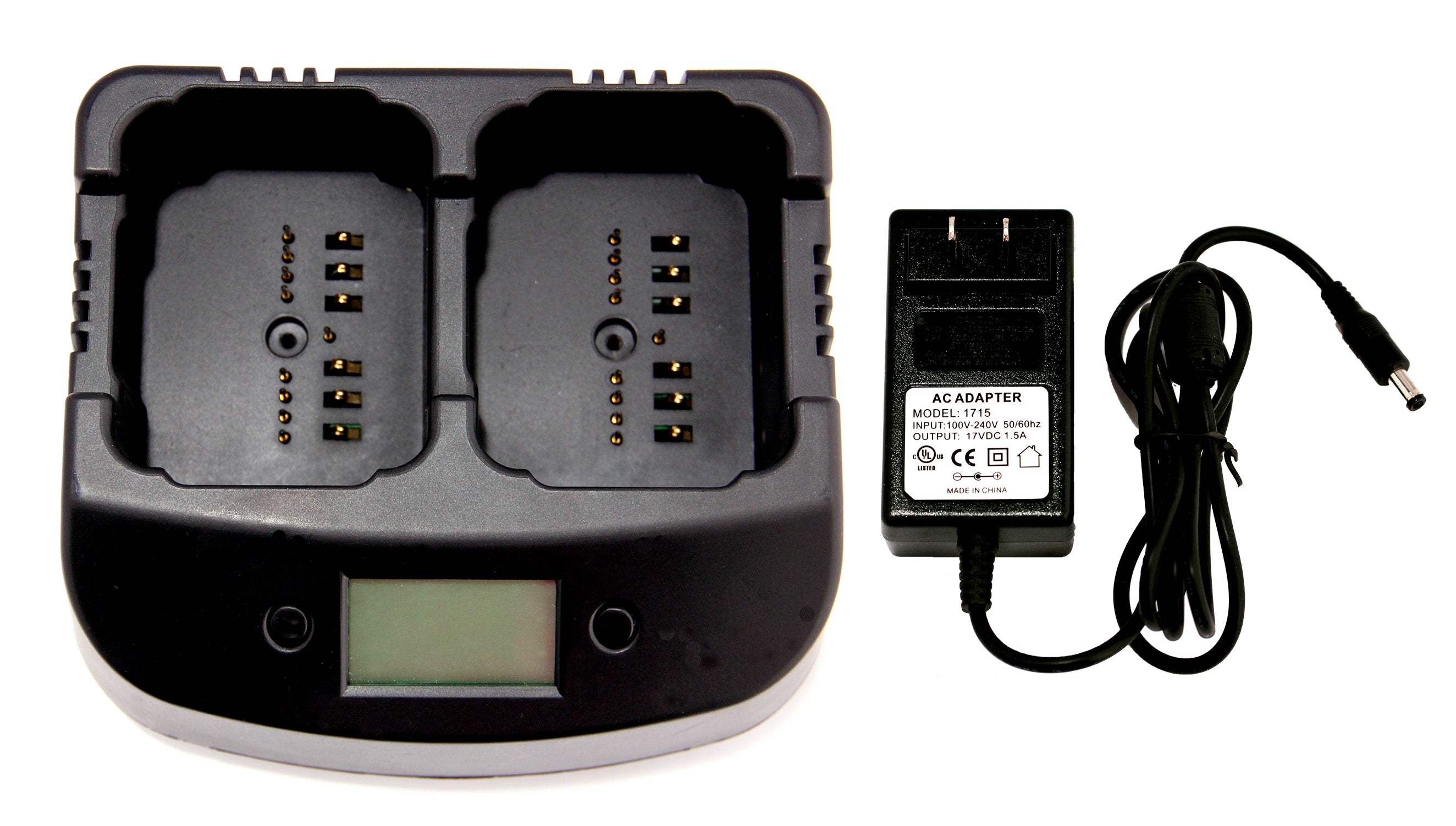

MaximalPower's Dual Port Radio Battery Charger for ICOM offers an exceptional design, compatible with Li-ion, Ni-Mh, or Ni-Cd battery packs, for easy attachment and detachment from the transceiver. It features an [DC] 13.5V~24V Lithium / LiPo1~3 Cells Ni-MH/Ni-Cd 2~8 Cells AC Plug, with an American type flat pin - simply acquire a separate AC plug converter for EU/AU outlets!
BATTERY CHARGER FACTORY DEFAULTS
| CHARGE SETTINGS | |
Charge Mode | Lithium/LiPo | NiMH/NiCd |
Current (Maximum) | 1A | 1A |
Pack Voltage | 7.4V / 2 Cells | 7.2V / 6 Cells |
Trickle | - | 40mA |
Cut-Temperature | 0-50c | 0-60c |
Safety Time | 6 Hours | 6 Hours |
| DISCHARGE SETTINGS | |
Current | 500mA | 500mA |
Pack Voltage | 7.4V / 2 Cells | 7.2V / 6 Cells |
Cut-off Voltage | 3.0 V/Cell | 1.0/Cell |
Cut-off Temperature | 0-55c | 0-70c |
| ANALYZER MODE | |
| Lithium/LiPo | Ni-MH/Ni-Cd |
ANALYZE | [Charge] > Wait 15 min > [Discharge] > [Charge] > [Complete] | [Discharge] > [Charge] > Wait 15 min > [Discharge] > [Charge] > [Complete] |
REFRESH | [Discharge] > [Charge] > [Complete] | [Discharge] > [Charge] > [Complete] |
DISCHARGE | [Discharge] > [Complete] | [Discharge] > [Complete] |

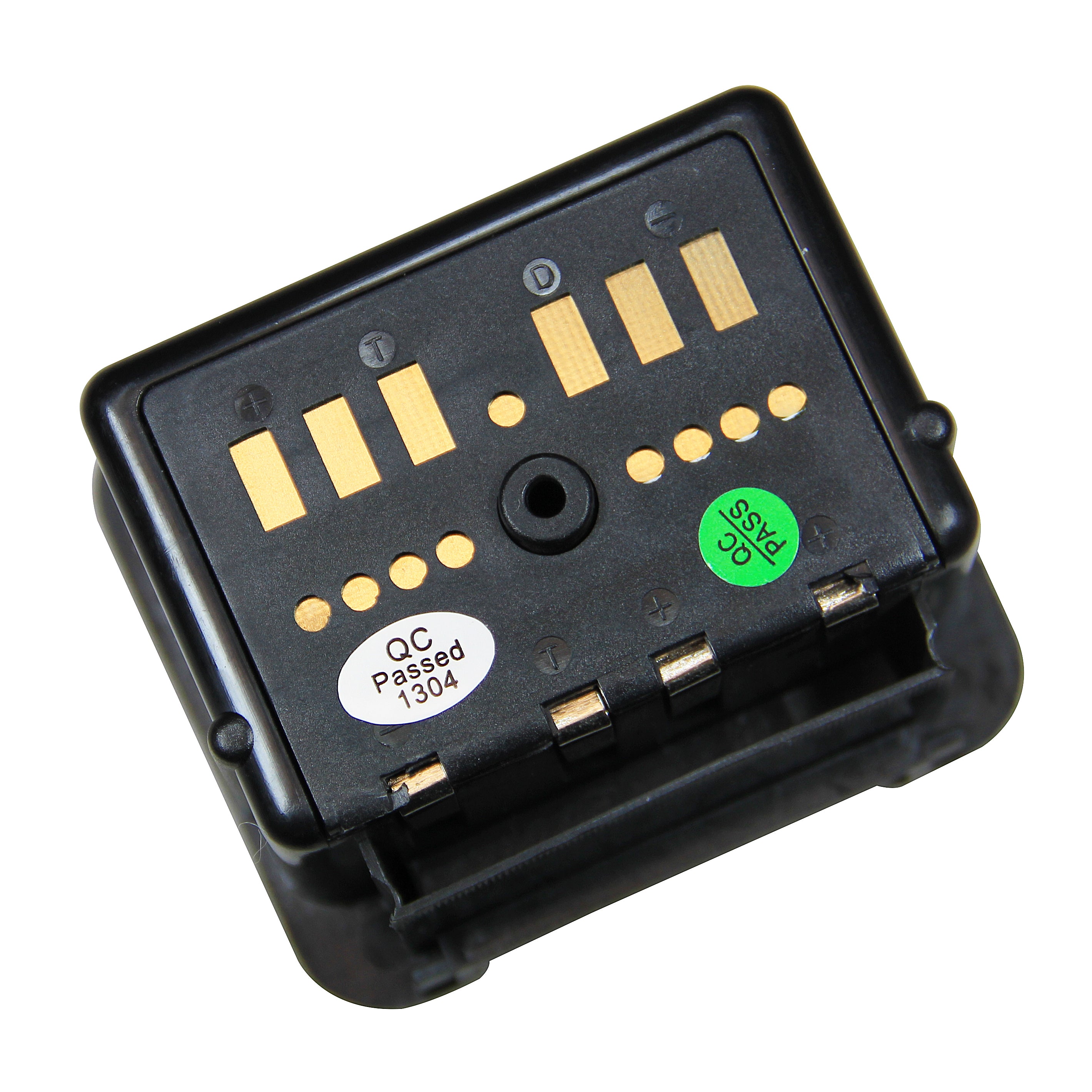

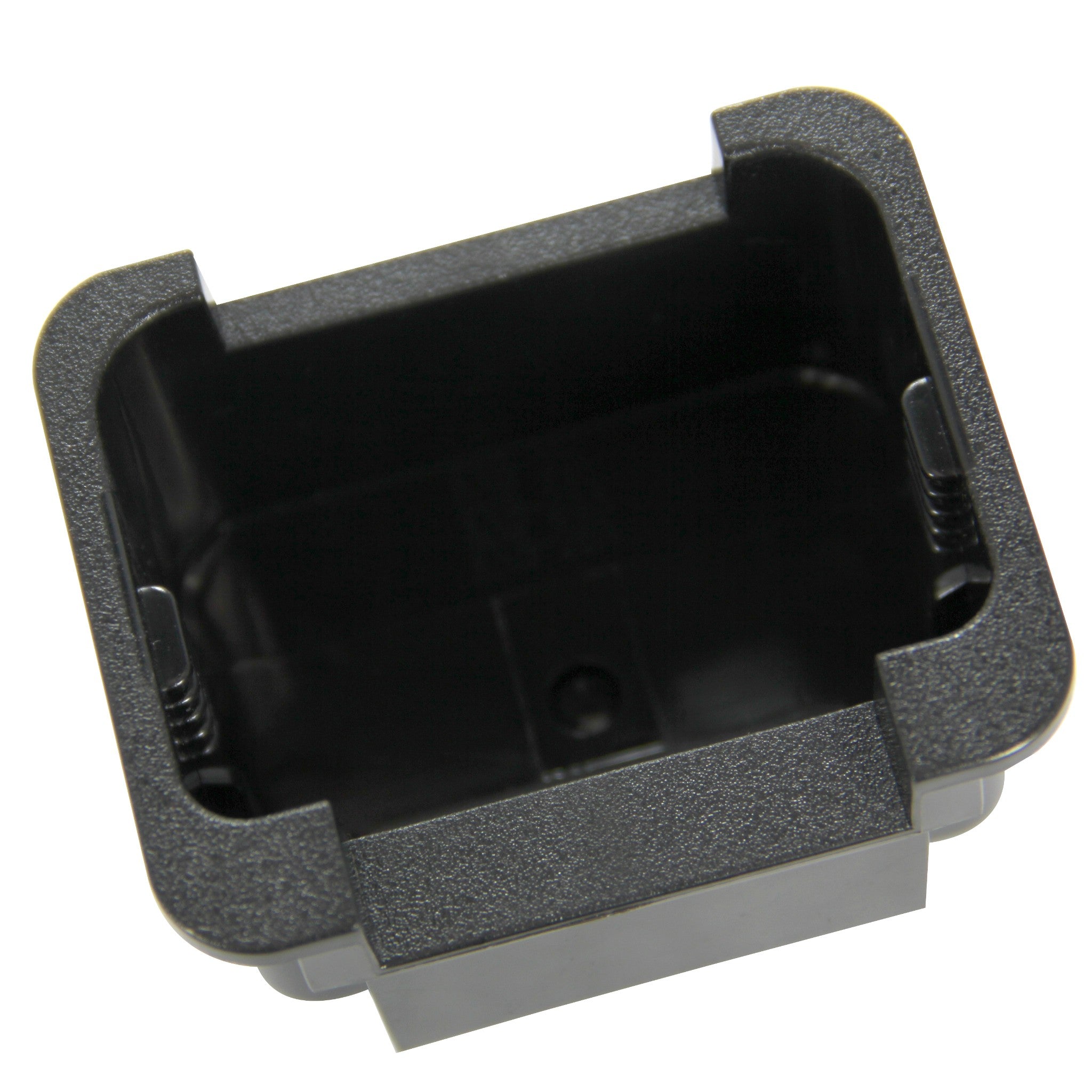

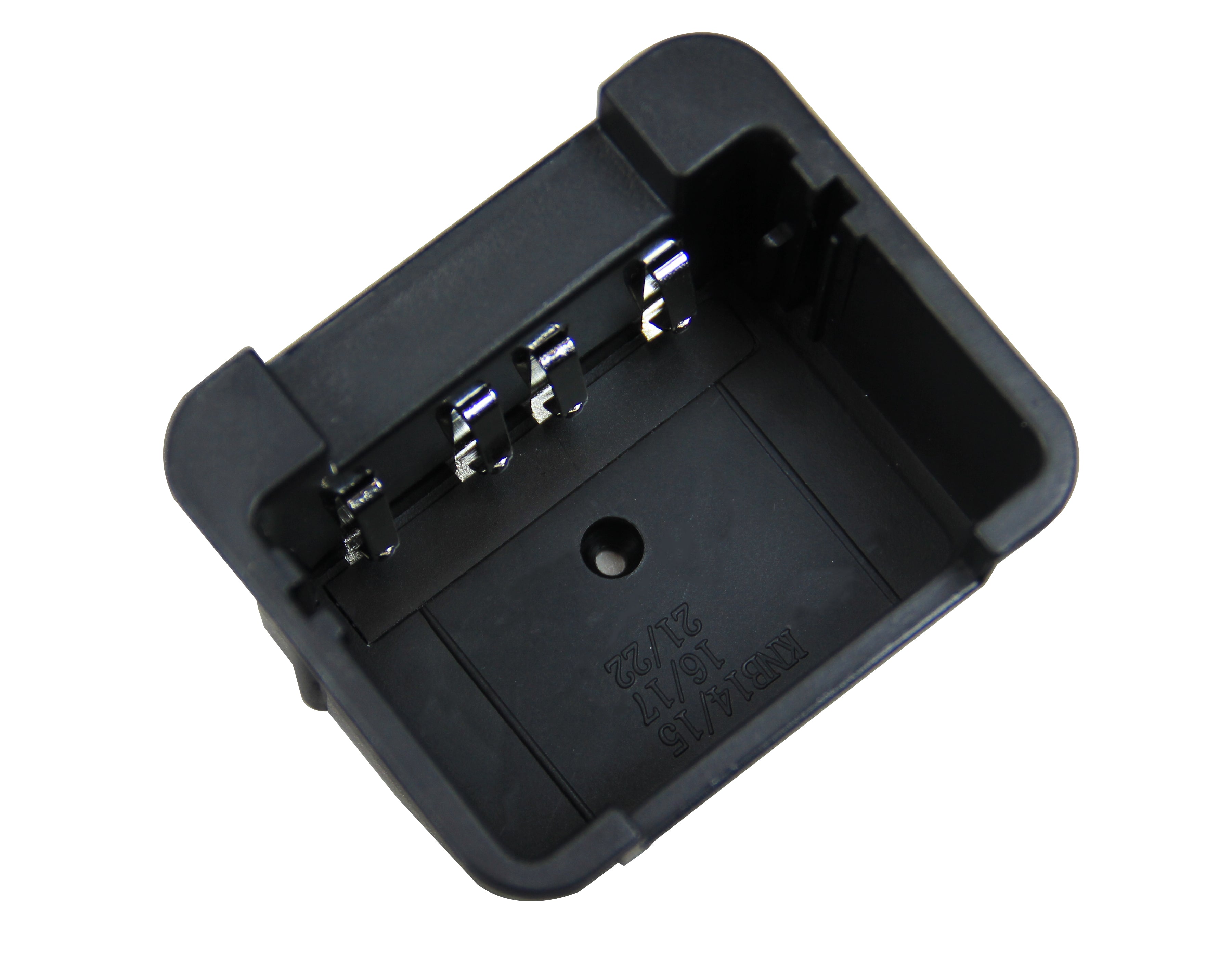

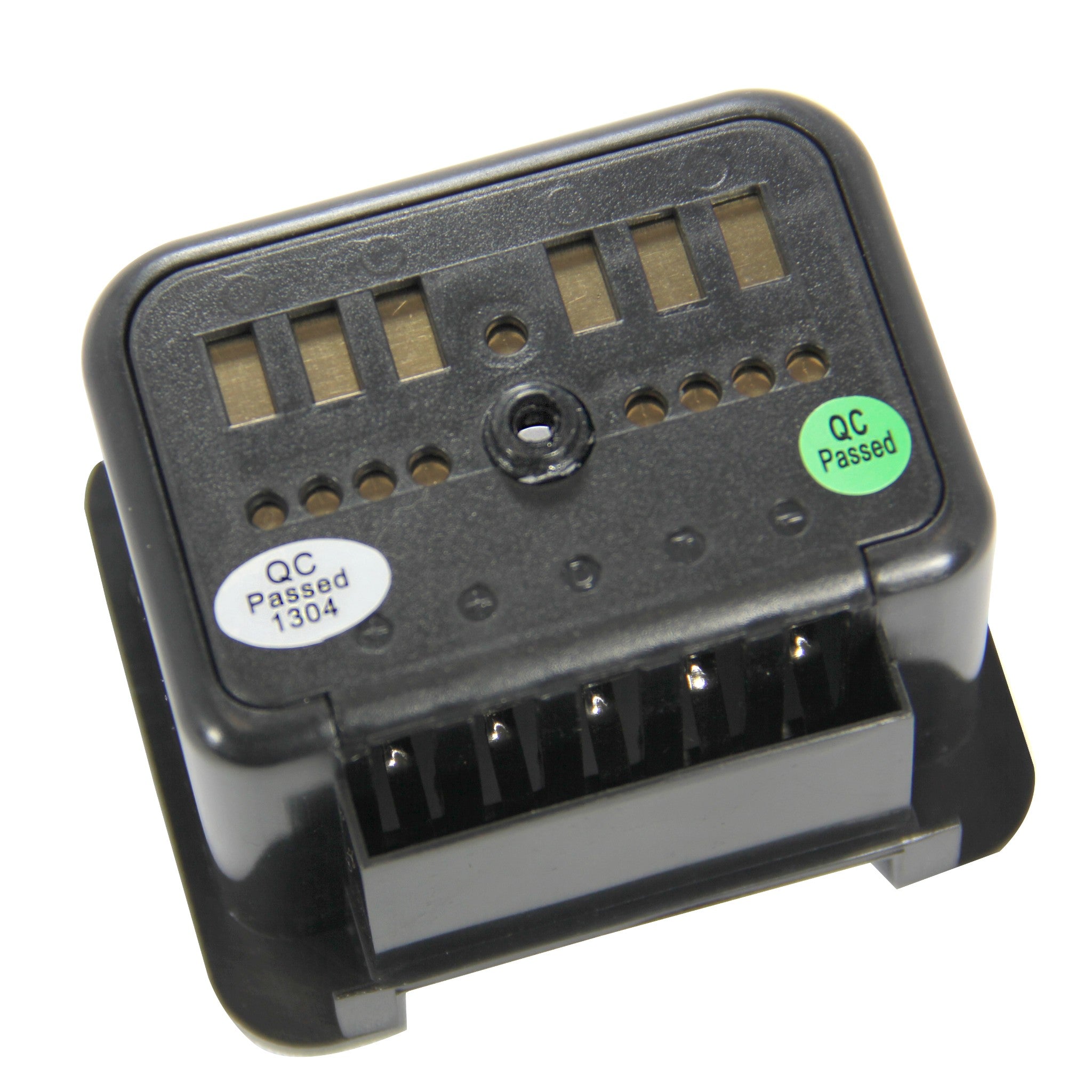

RB-POD COMPATIBILITY
OEM PART NO. | COMPATIBLE MODEL NO. |
ICOM BP-209, BP-210, BP-222 (SKU: 0940x2) | ICOM Two-Way Radio / Handheld Transceiver |
ICOM BP-230, BP-231, BP-232, BP-232Li, BP-232N (SKU: 0886x2) | ICOM IC-A14, IC-A14S, IC-F14, IC-F14S, IC-F15, IC-F16, IC-F16S, IC-F24, IC-F24S, IC-F25, IC-F26, IC-F26S, IC-F33, IC-F33G, IC-F33GS, IC-F33GT, IC-F34, IC-F43, IC-F43G, IC-F43TR, IC-F43GS, IC-F43GT, IC-F44, IC-F3021, IC-F3021T, IC-F3021S, IC-F3061, IC-F3061T, IC-F3061S, IC-F3062, IC-F3062T, IC-F3062S, IC-F4021, IC-F4021T, IC-F4021S, IC-F4061, IC-F4061T, IC-F4061S, IC-F4062, IC-F4062T, IC-F4062S |
